| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Stranded) Max | |
| Conductor Cross Section (Stranded) Min | |
| Conductor Cross Section Solid Max | |
| Conductor Cross Section Solid Min | |
| Current | |
| Features | |
| Flammability Class | |
| Halogen Free | |
| Hole Diameter | |
| Industrial Grade | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Maximum Load Current | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Pin Dimensions | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage (II/2) | |
| Rated Surge Voltage (III/2) | |
| Rated Surge Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| SVHC Present | |
| Screw Thread | |
| Stripping Length | |
| Tightening Torque | |
| UL 94 | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

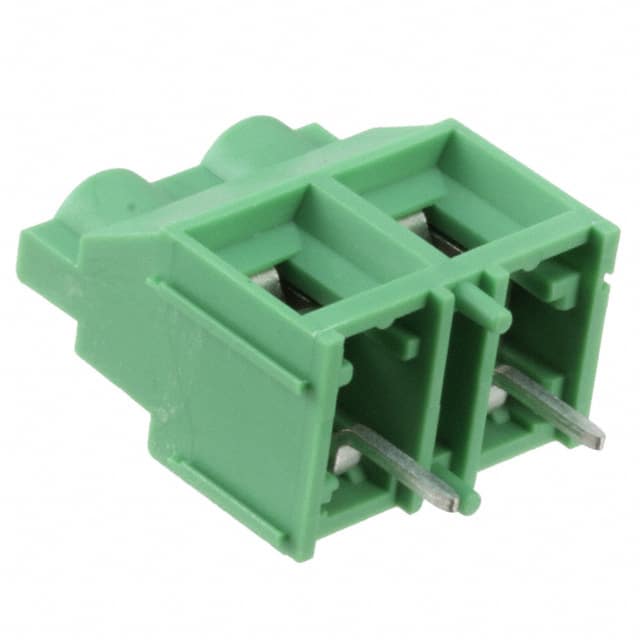

The Phoenix Contact 1710072 is a PCB terminal block from the MKDSV 5 series. It features 2 positions with a 9.52 mm pitch and uses a screw connection with a rising cage clamp for secure wire termination. The block is rated for a nominal current of 32 A and a rated voltage of up to 1000 V (in overvoltage category III/2). It accepts solid conductors from 0.2 mm² to 6 mm² and stranded conductors from 0.2 mm² to 4 mm² (10-30 AWG).
The terminal block is designed for through hole soldering with a horizontal mating orientation. The insulating material is polyamide (PA) with flammability class V0 per UL 94. The block includes side interlocking features for multi-position assemblies. Mechanical specifications include M3 screw threads, a minimum tightening torque of 0.5 Nm, and a stripping length of 8 mm.
The part is RoHS3 compliant (unverified), REACH unaffected (unverified), and has an MSL of 1 (unlimited).
It has 2 positions with a 9.52 mm pitch.
The nominal current is 32 A.
The rated voltage is 1000 V (overvoltage category III/2) and 690 V (III/3).
It uses through hole soldering (through hole mounting).
It accepts solid wire from 0.2 mm² to 6 mm² and stranded wire from 0.2 mm² to 4 mm² (10-30 AWG).
The insulating material (PA) has a flammability class of V0 per UL 94.
Yes, it has side interlocking for multi-position assemblies.
