| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Process Temperature | |
| Rated Current | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

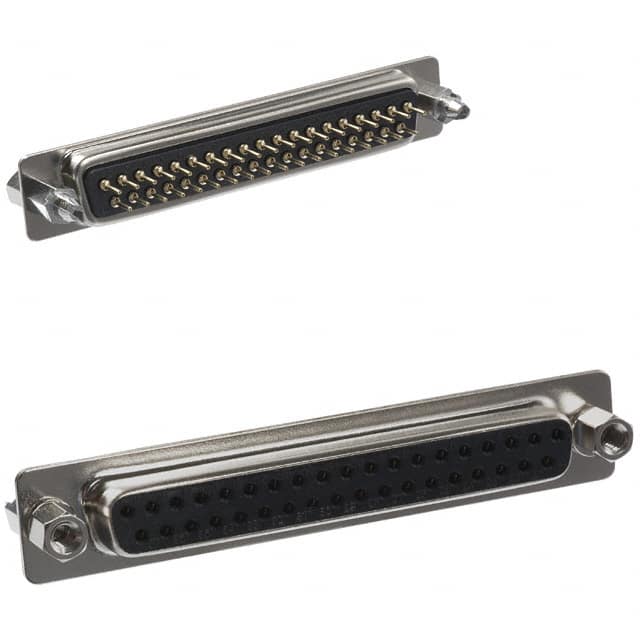

The NorComp 171-037-213R911 is a 37-position D-Sub receptacle with female contacts. It features a panel mount design with through-hole solder termination for secure attachment to a PCB. The contacts are made of brass with gold flash plating, ensuring reliable signal transmission. The insulator is PA6T with a UL94 V-0 flammability rating, and the shell is nickel-plated steel. Electrical ratings include 5A current, 500VAC dielectric withstanding voltage, 1000 MΩ minimum insulation resistance, and 15 mΩ maximum contact resistance. The operating temperature range is -55°C to +125°C. This connector includes a board lock feature for additional mechanical stability. It is RoHS3 compliant as per the datasheet.
37 positions.
5A.
500VAC dielectric withstanding voltage.
Panel mount and through-hole solder.
-55°C to +125°C.
Gold flash.
Yes, RoHS3 compliant per datasheet.
