| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Process Temperature | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Voltage Rating |

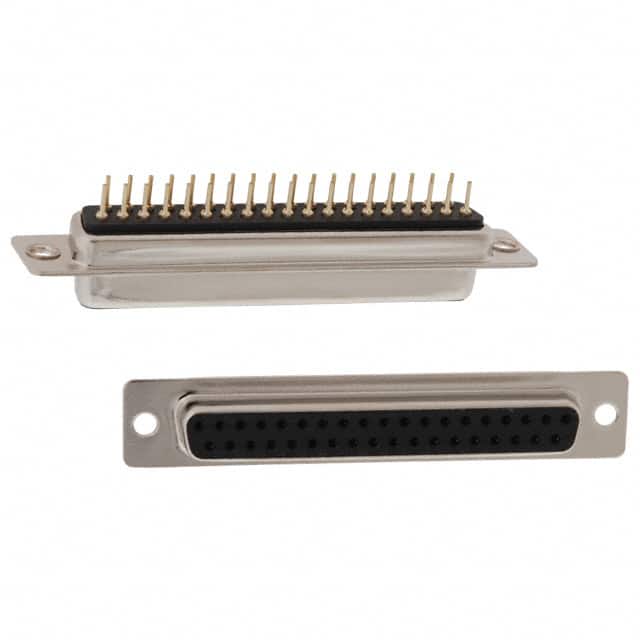

The NorComp 171-037-213R001 is a D-Sub connector assembly designed as a receptacle with female sockets in a 37-position, 2-row configuration. It supports panel mount through hole installation and is terminated via solder connections. The contacts are made of brass with gold flash plating, ensuring low contact resistance of 15 mOhms maximum. The shell is constructed from steel with nickel plating, providing durability and EMI shielding. Electrically, this connector is rated for 5A current and can withstand 500VAC for 1 minute. Insulation resistance is 1000 MOhms minimum. The insulator is made from PA6T material with a UL94 V-0 flammability rating, and the assembly can operate over a temperature range of -55°C to +125°C. The maximum process temperature is 260°C. This part is typically used in data communication, industrial control, and computer interface applications where reliable signal transmission is required.
37 positions in 2 rows.
5A per contact.
500VAC for 1 minute (withstanding voltage).
Panel mount through hole with solder termination.
-55°C to +125°C.
Gold flash over brass contacts.
Steel with nickel plating.
