| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Gender | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Process Temperature | |
| Rated Voltage | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

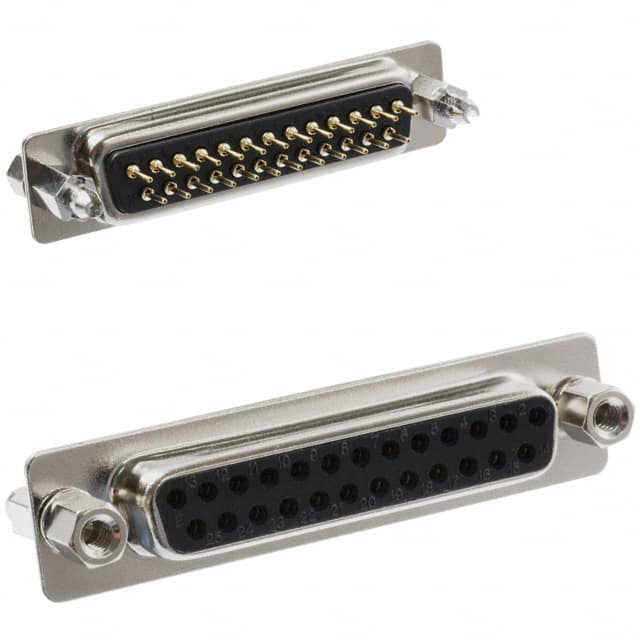

The NorComp 171-025-213R911 is a 25-position D-Sub receptacle connector with female sockets. It features a panel mount and through hole mounting style with solder termination. The connector has 2 rows of gold plated brass contacts with a gold flash finish, providing reliable signal connections.
Electrical specifications include a current rating of 5A, dielectric withstanding voltage of 500VAC for 1 minute, insulation resistance of 1000 MOhms minimum, and contact resistance of 15 mOhms maximum. The operating temperature range is -55°C to +125°C.
The insulator is made of PA6T with UL94 V-0 flammability rating. The shell is nickel plated steel. It includes a board lock feature and has flange features for board side (4-40) and mating side female screwlock (4-40). The shell size is 3 (DB, B). This connector is designed for use in data communication, industrial control, and computer peripheral applications.
25 positions.
5A.
500VAC for 1 minute.
Panel Mount, Through Hole.
-55°C to +125°C.
15 mOhms maximum.
Yes, RoHS3 compliant as per datasheet.
