| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Process Temperature (Max) | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Voltage Rating |

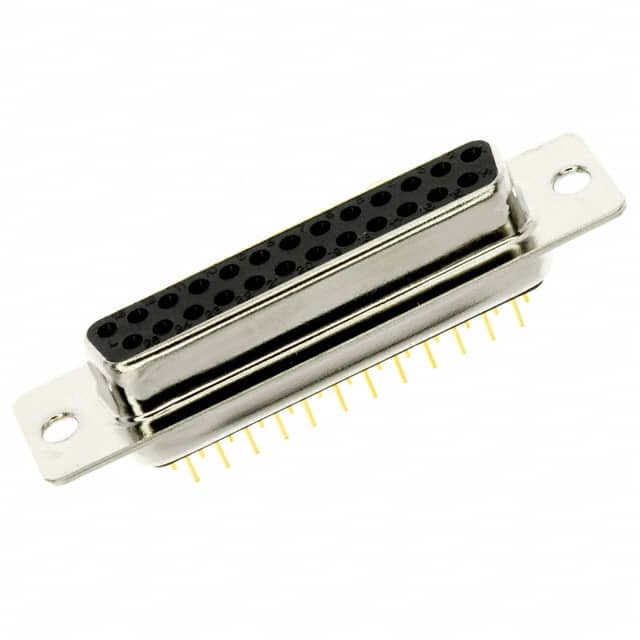

The NorComp 171-025-213R001 is a 25-position D-Sub receptacle connector designed for reliable signal interconnection in industrial and commercial applications. It features female sockets with gold flash contact finish, ensuring low contact resistance (15 mOhms max) and corrosion resistance. The connector is rated for 5A current and 500VAC dielectric strength, with insulation resistance of 1000 MOhms minimum.
The insulator is molded from PA6T thermoplastic with UL94 V-0 flammability rating, capable of withstanding process temperatures up to 260°C. The shell is nickel-plated steel, providing EMI shielding and durability. Mounting is panel mount with through-hole solder termination, and the flange feature is housing/shell unthreaded. Operating temperature range is -55°C to +125°C, making it suitable for harsh environments. This part is RoHS compliant and REACH unaffected.
5A
500VAC for 1 minute
Panel mount with through-hole solder termination
25 positions
-55°C to +125°C
15 mOhms maximum
Yes, RoHS3 compliant
