| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Gender | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Process Temperature | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Plating | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Voltage Rating |

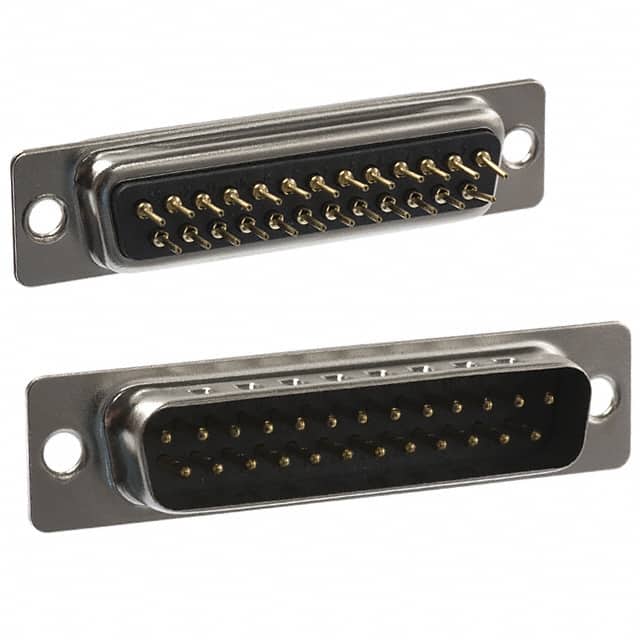

The NorComp 171-025-113R001 is a 25-position D-Sub plug (male pins) from the 171 series, designed for standard density applications. It features a panel mount, through-hole solder termination (DIP solder style) with gold flash plated brass contacts. The steel shell is nickel plated and includes grounding indents for improved EMI performance and additional retention.
Electrical ratings include a current rating of 5A, a voltage rating of 500VAC (withstanding voltage for 1 minute), minimum insulation resistance of 1000 MOhms, and maximum contact resistance of 15 mOhms. The operating temperature range is -55°C to +125°C.
The insulator is made of glass-filled PA6T thermoplastic, rated UL94 V-0, with a maximum process temperature of 260°C. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited) – though these compliance statuses are unverified from original documents.
This plug is suitable for a variety of applications including industrial automation, test and measurement, communications, and rugged outdoor sensors. It is available without hardware options (no mounting screws or board locks).
25 positions.
5A.
500VAC (withstand voltage for 1 minute).
Panel mount with through-hole solder termination.
-55°C to +125°C.
15 mOhms maximum.
PA6T glass-filled thermoplastic, UL94 V-0.
