| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Gender | |
| Hardware Option | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Process Temperature | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Plating | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Voltage Rating |

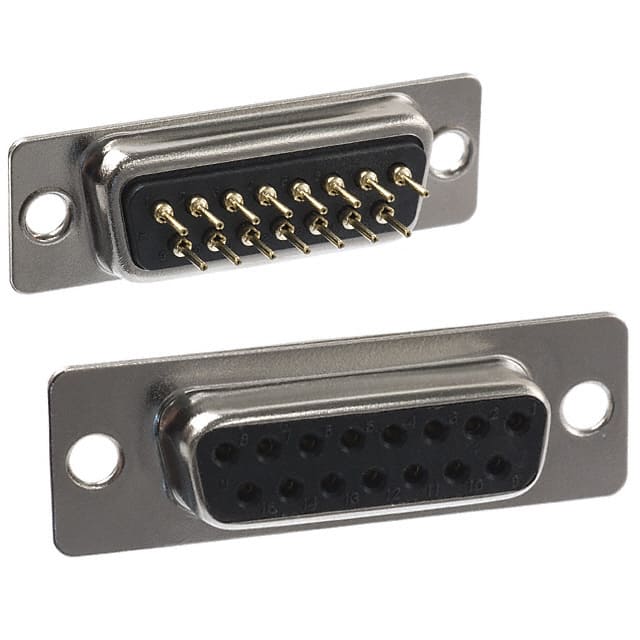

The NorComp 171-015-213R001 is a standard D-Sub receptacle connector featuring 15 positions arranged in 2 rows with a DA shell size. It is designed for panel mount and through hole solder termination, making it suitable for secure and reliable connections in a variety of electronic assemblies.
The connector uses female sockets with gold flash plated brass contacts and a nickel plated steel shell. The insulator is made of PA6T material with a UL94 V-0 flammability rating. Electrical ratings include a current rating of 5A and a voltage rating of 500VAC. The operating temperature range is -55°C to +125°C.
The connector has 15 positions arranged in 2 rows with a DA shell size.
The current rating is 5A.
The voltage rating is 500VAC (withstand voltage for 1 minute).
The mounting type is panel mount with through hole solder termination.
The operating temperature range is -55°C to +125°C.
The insulator is made of PA6T and has a UL94 V-0 flammability rating.
The contacts are made of brass with a gold flash plating.
