| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Process Temperature | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Voltage Rating |

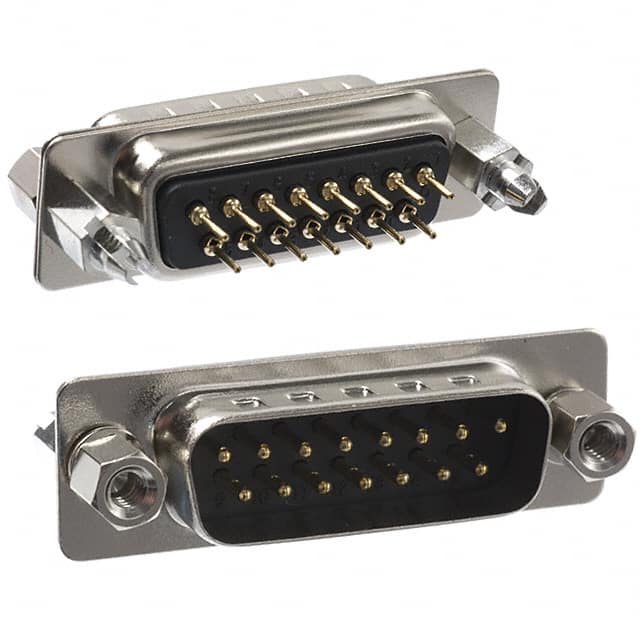

The NorComp 171-015-113R911 is a 15-position D-Sub plug connector with male pins. It features a panel mount design with through-hole solder termination, making it suitable for secure board-to-cable connections. The connector shell is made of steel with nickel plating, and the contacts are gold-plated brass. Electrical specifications include a current rating of 5A, voltage rating of 500VAC, contact resistance of 15 mOhms max, and insulation resistance of 1000 MOhms min. The operating temperature range is -55°C to +125°C. It includes board lock and grounding indents for reliable installation. The insulator material is PA6T with UL94 V-0 flammability rating. The flange features board side (4-40) and mating side female screwlock (4-40) for secure attachment. This connector is ideal for industrial and communication applications requiring robust D-Sub connections.
15 positions.
5A.
500VAC for 1 minute.
Panel mount with through-hole solder termination.
Gold-plated brass.
Steel with nickel plating.
-55°C to +125°C.
