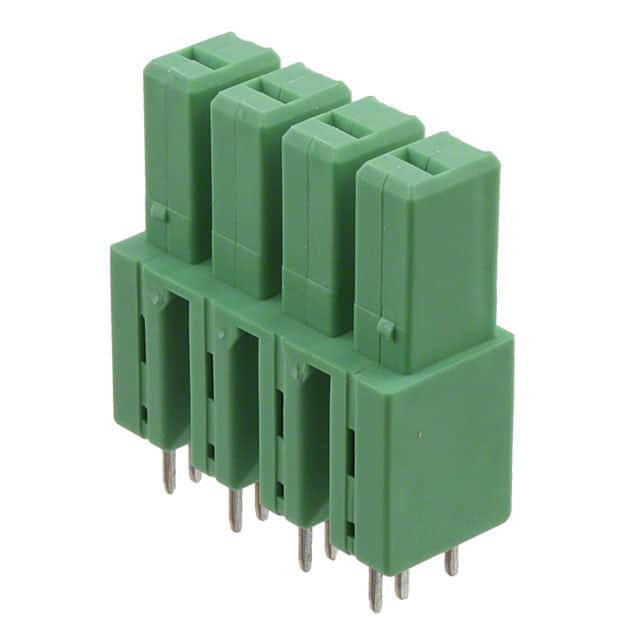

1708844 4-position terminal block header from Phoenix Contact with 7.62mm pitch, vertical orientation, and through hole solder termination. Rated for 41A and 630V (III/2).
Mfr Part #:

1708844

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
4-position terminal block header from Phoenix Contact with 7.62mm pitch, vertical orientation, and through hole solder termination. Rated for 41A and 630V (III/2).
✓ Total Stock: 28 pcs
$ Price Range: $9.93

1708844 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1708844 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Hole Diameter
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1708844 Description

Short technical summary and product information.

The Phoenix Contact 1708844 is a 4-position terminal block header from the IPCV 5 series. It features a 7.62mm pitch, vertical header orientation, and through hole solder termination. The header is designed for use with female sockets and has a green polyamide (PA) insulating material with a V0 flammability rating per UL 94.



Electrical ratings include a nominal current of 41A per EN-VDE and a rated voltage of 630V for overvoltage category III/2, or 1000V for category II/2. For UL/CUL applications, the header is rated 300V/41A for Use Groups B and C, and 600V/5A for Use Group D. The rated surge voltage is 6kV.



Mechanical dimensions include a length of 12.8mm, pin dimensions of 1.2 x 0.8mm, and a recommended hole diameter of 1.3mm. The contacts have a tin mating finish. The header is RoHS3 compliant and packaged in quantities of 50 pieces.

1708844 Quick Information

Product Type: Terminal Block Header
Series: IPCV 5
Canonical Name: Phoenix Contact 1708844 - IPCV 5/4-G-7.62 Header, Female Sockets, 4 Position, 7.62mm Pitch, Through Hole
Subcategory: Terminal Block Headers

1708844 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1708844 Estimated Pricing

Qty Low High
1+ $9.93 $9.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

1708844 Features

  • 4 positions with 7.62mm pitch spacing.
  • Rated for 41A and 630V (III/2).
  • Through hole solder termination.
  • Green PA insulating material, UL 94 V0.
  • Tin-plated contacts for reliable connection.

1708844 Applications

  • Used in industrial control panels.
  • Suitable for power distribution systems.
  • Ideal for high-current terminal blocks.
  • Common in automation equipment.

1708844 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1708844 have?

4 positions.

What is the pitch of this terminal block header?

7.62mm (0.300 inches).

What is the current rating of the 1708844?

41A nominal current per EN-VDE, and 41A for UL/CUL Use Groups B and C, 5A for Group D.

What is the voltage rating?

630V for EN-VDE (III/2), 1000V (II/2), and 300V for UL/CUL Groups B and C, 600V for Group D.

What is the mounting type?

Through hole with solder termination.

What is the flammability rating of the insulating material?

V0 per UL 94.

What is the insulating material?

Polyamide (PA).
