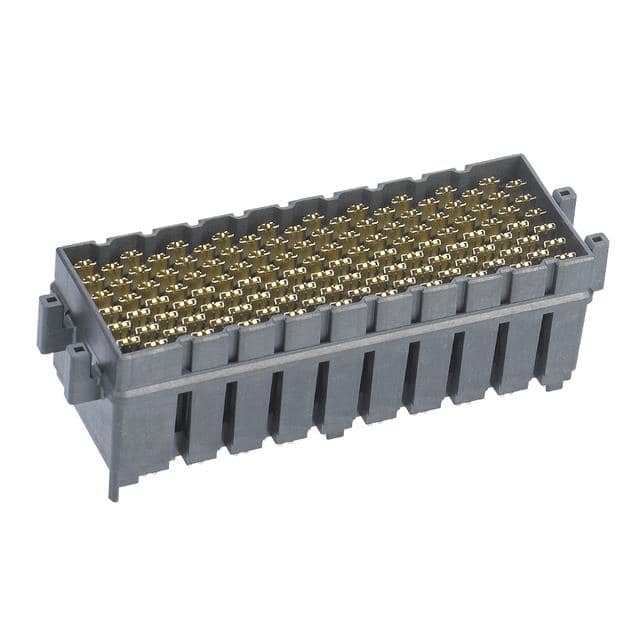

1708070036 Molex 1708070036 NEOSCALE plug assembly is a 216-position, 4-row, 2.80mm pitch array connector with surface mount termination and gold contacts.
Mfr Part #:

1708070036

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 1708070036 NEOSCALE plug assembly is a 216-position, 4-row, 2.80mm pitch array connector with surface mount termination and gold contacts.
✓ Total Stock: 4,707 pcs
$ Price Range: $29.78

1708070036 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,707 pcs
On Request
4707 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1708070036 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

1708070036 Description

Short technical summary and product information.

The Molex 1708070036 is a NEOSCALE series plug assembly designed for high-density mezzanine board-to-board connections. It features an array of 216 male pins arranged in 4 rows with a pitch of 2.80mm, enabling compact and reliable interconnections. The connector has a mated stacking height of 7mm and a height above board of 0.608 inches (15.44mm), suitable for space-constrained designs.



The connector is surface mount compatible and includes a board guide and pick-and-place features to facilitate automated assembly. Contacts are gold plated with a thickness of 30.0µin (0.76µm), ensuring excellent conductivity and corrosion resistance. This connector is ideal for applications requiring high pin counts in a small form factor, such as telecom, networking, and data communications equipment.



The 1708070036 is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited), though compliance data is unverified and should be confirmed with the manufacturer. The part is available from distributors like DigiKey (part number 900-1708070036-ND).

1708070036 Quick Information

Product Type: Array Connector, Male Pins
Series: NeoScale
Canonical Name: Molex 1708070036 NEOSCALE Plug Assembly, 216 Positions, 4 Rows, 2.80mm Pitch, Surface Mount, Gold Contacts
Subcategory: Mezzanine Connector

1708070036 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1708070036 Estimated Pricing

Qty Low High
140+ $29.78 $29.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

1708070036 Features

  • 216-position 4-row array connector.
  • 2.80mm pitch for high-density designs.
  • Surface mount termination with gold contacts.
  • 7mm mated stacking height.
  • Includes board guide and pick-and-place features.

1708070036 Applications

  • Ideal for mezzanine board-to-board connections.
  • Suitable for high-density signal routing.
  • Used in telecom and networking equipment.
  • Pick-and-place compatible for automated assembly.

1708070036 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1708070036 have?

216 positions arranged in 4 rows.

What is the pitch of this connector?

2.80mm (0.110").

What is the mounting type?

Surface mount.

What is the mated stacking height?

7mm.

What contact finish is used?

Gold with a thickness of 30.0µin (0.76µm).

Does the connector include any special features?

Yes, it includes a board guide and pick-and-place features.
