| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

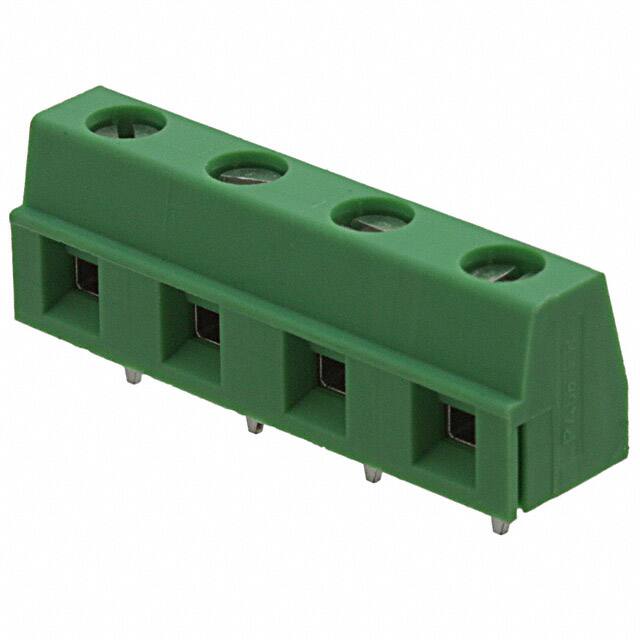

The Phoenix Contact 1707043 (GMKDSN 1,5/ 4-7,62) is a 4-position PCB terminal block designed for wire-to-board connections. It uses a screw connection with a rising cage clamp for secure wire termination, accepting 14-30 AWG wire. The pitch is 7.62 mm, and the mating orientation is horizontal with the board.
Electrical ratings include a nominal current of 16 A and a nominal voltage of 630 V, with a rated surge voltage of 6 kV. The insulating material is polyamide (PA) with a flammability rating of UL 94 V0. The screw thread is M3 with a tightening torque of 0.5-0.6 Nm, and the stripping length is 6 mm.
This terminal block is through-hole mounted and features side interlocking for multi-position assembly. It is suitable for compact mains connections and 630 V applications. The green color is standard for the series.
It has 4 positions.
The pitch is 7.62 mm.
The nominal current is 16 A and the nominal voltage is 630 V.
It uses through-hole mounting.
It accepts 14-30 AWG wire.
The insulating material is PA with a flammability class of UL 94 V0.
The screw thread is M3 with a tightening torque of 0.5-0.6 Nm.
