1706756 Phoenix Contact 1706756 is a 4-position wire-to-board terminal block with 6.35mm pitch. It features a screw rising cage clamp termination, rated for 30A and 300V.
Mfr Part #:

1706756

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1706756 is a 4-position wire-to-board terminal block with 6.35mm pitch. It features a screw rising cage clamp termination, rated for 30A and 300V.
✓ Total Stock: 92 pcs

1706756 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
92 pcs
On Request
92 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1706756 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1706756 Description

Short technical summary and product information.

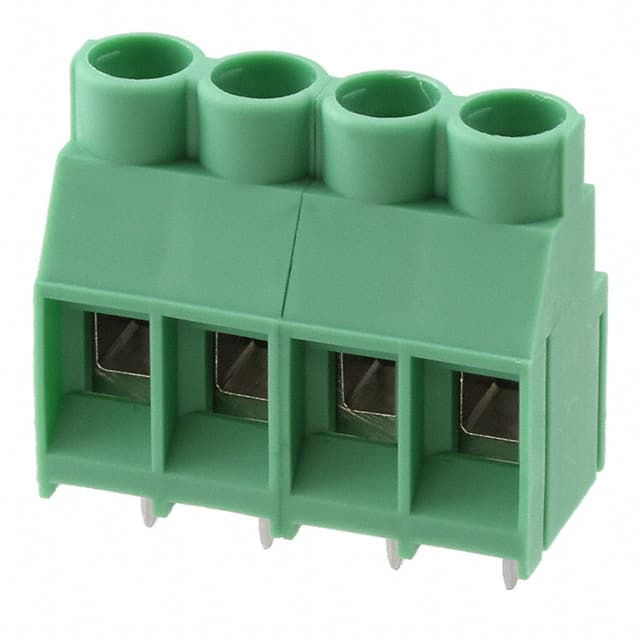

The Phoenix Contact 1706756 is a 4-position wire-to-board terminal block designed for reliable PCB connections. It features a 6.35mm pitch and accepts 10-28 AWG wire. The screw rising cage clamp termination ensures secure wire retention. The block is rated for 30A and 300V, suitable for power distribution applications. The through-hole mounting allows for robust attachment to the PCB. The green housing and side interlocking feature enable multiple blocks to be joined for additional positions. The horizontal mating orientation facilitates easy wire entry from the side of the board.

1706756 Quick Information

Product Type: Wire-to-Board Terminal Block
Canonical Name: Phoenix Contact 1706756 Wire-to-Board Terminal Block, 4 Position, 6.35mm Pitch, Through Hole, Screw Rising Cage Clamp
Subcategory: Screw Terminal Block

1706756 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1706756 Features

  • 4 positions with 6.35mm pitch.
  • Rated for 30A current and 300V.
  • Screw rising cage clamp termination.
  • Accepts 10-28 AWG wire.
  • Side interlocking for multiple blocks.

1706756 Applications

  • Ideal for power distribution on PCBs.
  • Used in industrial control cabinets.
  • Suitable for lighting and HVAC systems.
  • Enables modular terminal block expansion.
  • Common in wire-to-board interconnect designs.

1706756 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1706756 have?

4 positions.

What is the pitch of the 1706756 terminal block?

6.35mm (0.250").

What is the current rating of the 1706756?

30 A.

What is the voltage rating of the 1706756?

300 V.

What is the mounting type of the 1706756?

Through hole.

What wire gauge range does the 1706756 accept?

10-28 AWG.

What type of wire termination does the 1706756 use?

Screw - Rising Cage Clamp.
