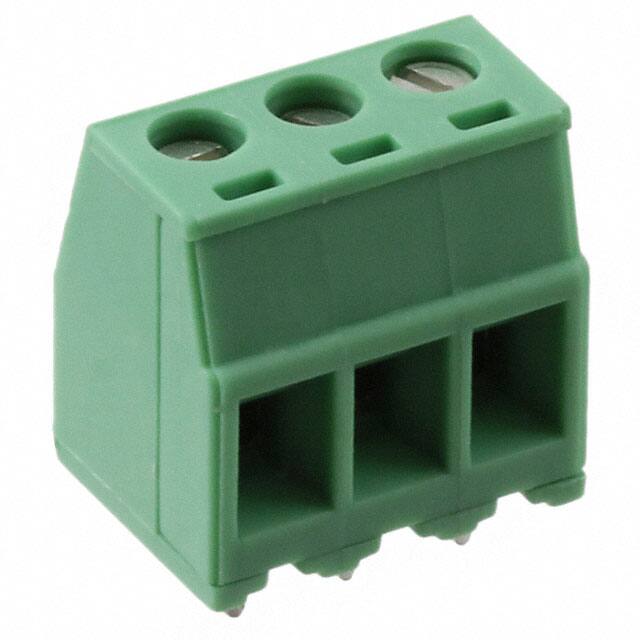

1705553 Phoenix Contact 1705553 is a 3 position, single level wire to board terminal block with 3.81mm pitch. Rated 10A and 300V, it features screw rising cage clamp termination and through hole mounting.
Mfr Part #:

1705553

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1705553 is a 3 position, single level wire to board terminal block with 3.81mm pitch. Rated 10A and 300V, it features screw rising cage clamp termination and through hole mounting.
✓ Total Stock: 2,046 pcs
$ Price Range: $2.82

1705553 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,046 pcs
On Request
2046 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1705553 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1705553 Description

Short technical summary and product information.

The Phoenix Contact 1705553 is a 3 position wire to board terminal block designed for reliable PCB connections. It has a single level with a 3.81mm pitch and accepts 14-30 AWG wire. The screw rising cage clamp termination ensures secure wire retention. Rated for 10A and 300V, this green terminal block is suitable for a variety of industrial and commercial applications. It mounts horizontally with the board via through hole soldering.

1705553 Quick Information

Product Type: Wire to Board Terminal Block
Series: MKDSD
Canonical Name: Phoenix Contact 1705553 3 Position 3.81mm Pitch Wire to Board Terminal Block
Subcategory: Wire to Board

1705553 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1705553 Estimated Pricing

Qty Low High
1+ $2.82 $2.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

1705553 Features

  • 3 positions with 3.81mm pitch.
  • Rated for 10A and 300V.
  • Screw rising cage clamp termination.
  • Accepts 14-30 AWG wire.
  • Through hole mounting, green color.

1705553 Applications

  • PCB wire termination in control panels.
  • Industrial automation and instrumentation.
  • Power distribution and signal connections.
  • Building automation and lighting systems.

1705553 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1705553 have?

It has 3 positions per level, single level.

What is the pitch of this terminal block?

The pitch is 3.81mm (0.150 inches).

What is the current and voltage rating?

Rated 10A nominal current and 300V nominal voltage.

What wire gauge does it accept?

It accepts 14-30 AWG wire.

What is the mounting type?

Through hole mounting.
