| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

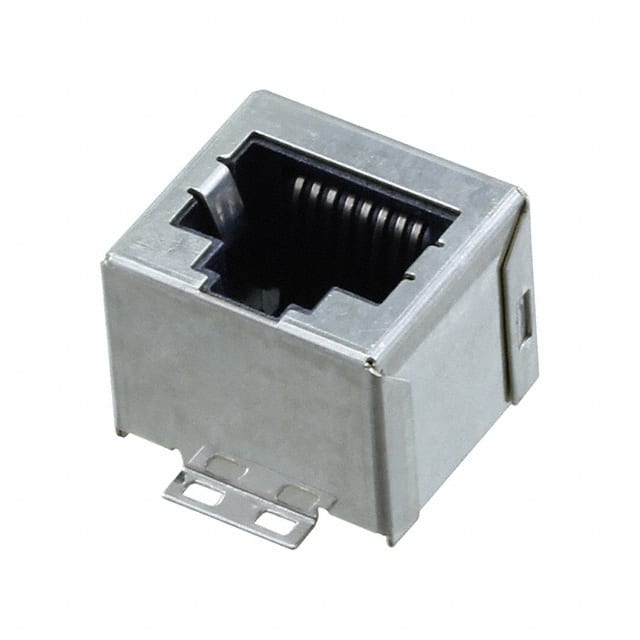

The TE Connectivity 1705549-1 is a single-port shielded modular jack designed for RJ45 Ethernet applications. It features 8 positions with 8 contacts (8P8C) and a vertical orientation for board-edge mounting.
The connector uses surface mount solder termination and is fully shielded to reduce electromagnetic interference. The contact material is phosphor bronze with a nickel finish, providing reliable electrical performance. The tab direction is user selectable, offering flexibility in cable insertion orientation.
This jack does not contain LEDs, making it suitable for applications where visual status indication is not required. It is designed for use in networking equipment, industrial controls, and data communication systems where a compact, shielded RJ45 interface is needed.
This is a modular jack with 8 positions and 8 contacts (8P8C), commonly used for RJ45 Ethernet connections.
The connector is surface mount (SMT) with solder termination.
Yes, the connector is shielded for electromagnetic interference protection.
The jack is vertical, and the tab direction is user selectable.
No, this connector does not contain LEDs.
