| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

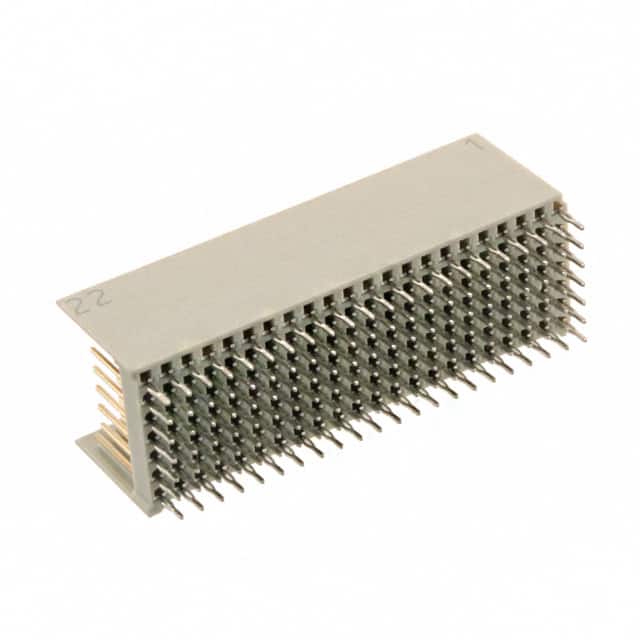

The Harting 17041542203 is a header connector featuring male pins with a B 22 connector style. It offers 154 total positions, comprising 110 signal contacts and 44 ground contacts arranged in a 5 + 2 row configuration. All positions are loaded, providing full connectivity for demanding backplane applications.
This connector uses a 2.00mm pitch and is designed for through hole mounting with press-fit termination, ensuring a reliable solderless connection to the PCB. The contact finish is gold or gold-palladium, offering excellent conductivity and corrosion resistance.
Specifically intended for CompactPCI P2 usage, this connector is suitable for high-density backplane interconnects in industrial computing and telecommunications equipment. Its press-fit termination simplifies assembly and reduces thermal stress during manufacturing.
Header, Male Pins.
154 positions (110 signal + 44 ground).
2.00mm (0.079 inches).
Through hole.
Press-Fit.
Gold or Gold-Palladium.
CompactPCI P2.
