| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Storage Temperature | |
| Termination | |
| Termination Style |

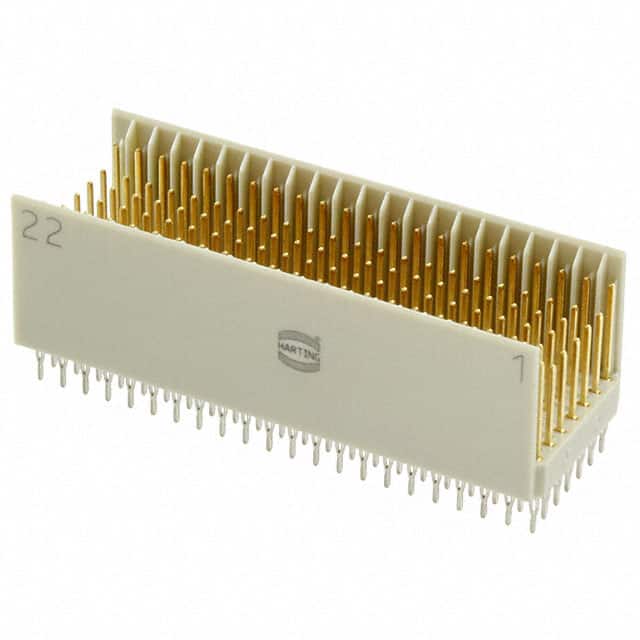

The Harting 17041541203 is a B 22 series backplane connector designed for CompactPCI applications. It features a male pin header configuration with 154 total positions, arranged as 110 signal contacts and 44 ground contacts in a 5 + 2 row layout. All positions are loaded.
The connector uses a 2.00mm pitch and is terminated via press-fit into a through-hole mounting pattern. The contact finish is gold or gold-palladium, ensuring reliable signal integrity and corrosion resistance. The connector style is B 22, conforming to the hard metric standard for backplane systems.
This part is RoHS3 compliant and REACH unaffected, with a moisture sensitivity level of 1 (unlimited). It is commonly used in CompactPCI backplane and subrack systems where high-density, reliable connections are required.
It has 154 positions total, with 110 signal contacts and 44 ground contacts.
The pitch is 2.00mm (0.079 inches).
It is a through-hole mounted connector with press-fit termination.
The connector style is B 22, used for CompactPCI backplane applications.
The contact finish is gold or gold-palladium.
The rows are configured as 5 + 2, meaning five signal rows and two ground rows.
Yes, all 154 positions are loaded.
