| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Front Panel Wire Connection | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Panel Mount Type | |
| Panel Thickness | |
| Pitch | |
| Positions Per Level | |
| Rear Panel Wire Connection | |
| Voltage | |
| Voltage Rating | |
| Width | |
| Wire Gauge |

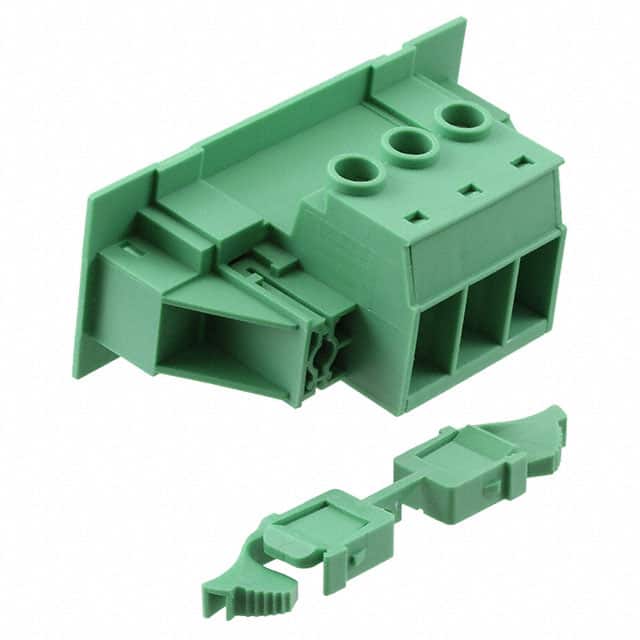

The Phoenix Contact 1703784 is a 3-position terminal block header designed for panel mount applications. It features a 10.16mm pitch and accepts wire gauges from 6 to 20 AWG. The header is rated for 55A current and 600V voltage, making it suitable for high-power connections. The green housing includes a threaded mating lock and shield connection on the front side. The rear panel wire connection uses a bolt/screw clamp with wire entry parallel to the panel. Panel thickness range is 0.039 to 0.118 inches (1.0 to 3.0mm). The mounting type is 2 piece, snap lock with front flange. This component is RoHS3 compliant and has an MSL of 1 (unlimited).
3 positions.
10.16mm.
55 A.
600 V.
Panel mount with 2 piece, snap lock - front flange.
6-20 AWG.
Green.
