| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

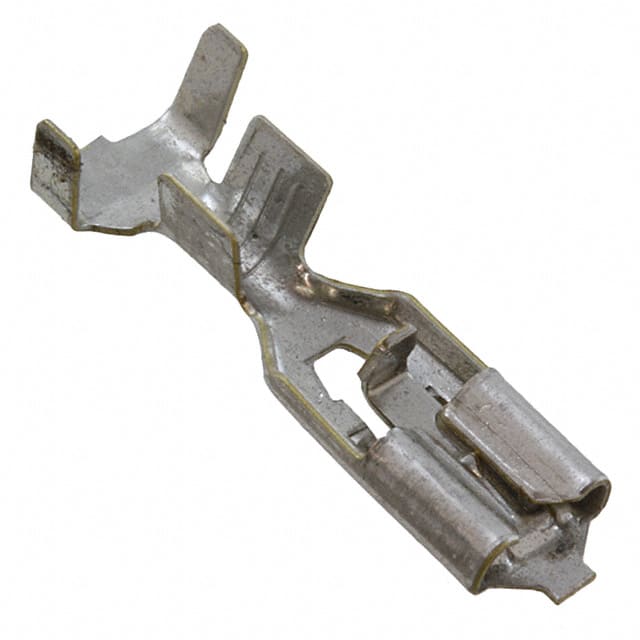

The TE Connectivity 170326-1 is a standard female quick disconnect terminal designed for reliable wire-to-tab connections. It accepts 14-18 AWG wire and features a 0.187" (4.75mm) tab width with a tab length of 0.236" (6.00mm) and tab thickness of 0.020" (0.51mm). The contact is made of tin-plated brass, providing good conductivity and corrosion resistance. This non-insulated terminal uses a crimp termination method and is suitable for free hanging (in-line) mounting applications. The overall length of the terminal is 21.59mm (0.850").
The terminal accepts 14-18 AWG wire.
The tab width is 0.187" (4.75mm).
No, it is non-insulated.
The contact material is tin-plated brass.
It uses crimp termination.
