| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

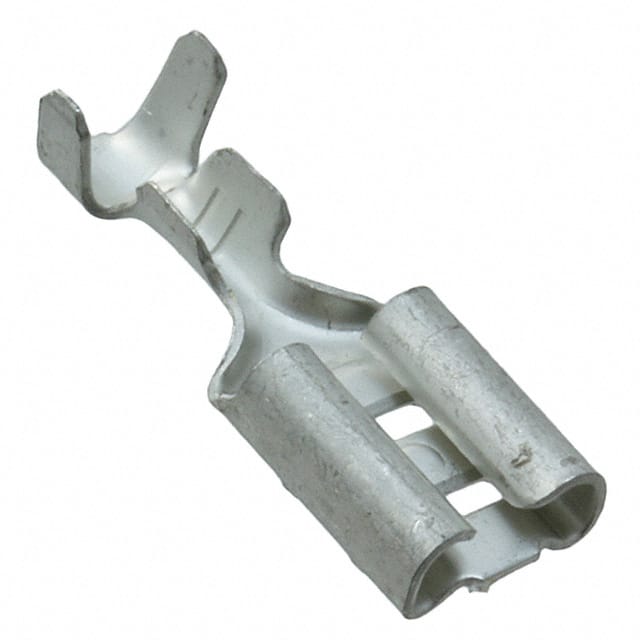

The TE Connectivity 170214-2 is a standard female quick disconnect receptacle designed for 0.187" tab terminals. This non-insulated crimp connector accepts wire gauges from 20 AWG to 24 AWG.
The receptacle features a brass contact with a tin finish, providing good conductivity and corrosion resistance. The tab thickness is 0.020" (0.51mm) and tab length is 0.252" (6.40mm). The overall length of the connector is 15.00mm (0.591").
This component is designed for free hanging (in-line) mounting, making it suitable for a variety of wire-to-wire or wire-to-tab applications in power distribution and signal circuits. The crimp termination ensures a secure mechanical and electrical connection when used with a compatible crimping tool.
It is a standard female receptacle (quick disconnect).
It accepts 20-24 AWG wire.
Tab width is 4.75mm (0.187") and tab thickness is 0.51mm (0.020").
It is non-insulated.
Contact material is brass with a tin finish.
It uses crimp termination.
Free hanging (in-line).
