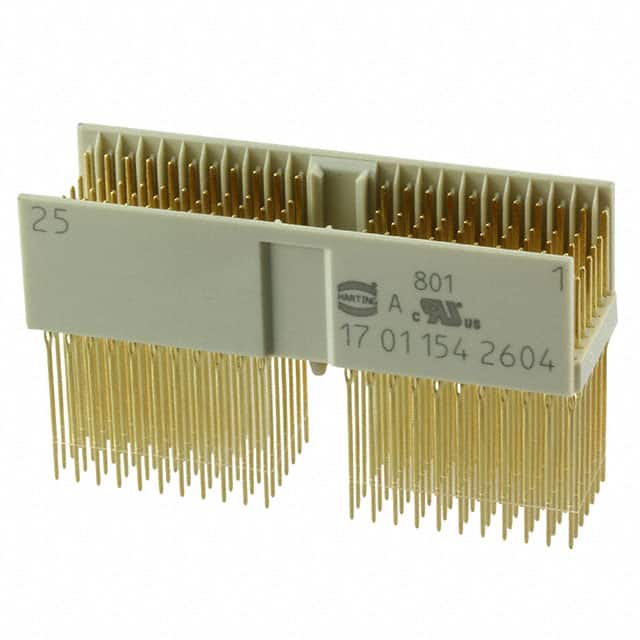

The Harting 17011542604 is a high-density backplane connector designed for CompactPCI applications. It is a header with male pins, offering 154 total positions: 110 signal contacts plus 44 dedicated ground contacts. The connector uses a 5+2 row configuration with a 2.00mm pitch, providing a compact yet robust interconnection solution.
Termination is via press-fit technology, which allows for solderless assembly into plated through holes, reducing thermal stress and enabling easier rework. The contacts are finished with gold or gold-palladium, ensuring reliable low-resistance connections over many mating cycles. The connector is mounted using through hole technology, providing mechanical stability in backplane environments.
This connector is part of the Hard Metric, Standard category and is suitable for use in telecommunications, data communications, industrial control, and other high-reliability backplane systems. The press-fit termination is ideal for automated assembly processes.
Header, Male Pins, Style A 22.
154 positions total: 110 signal plus 44 ground.
2.00mm (0.079 inches).
Through hole mounting with press-fit termination.
Gold or gold-palladium.
CompactPCI backplane applications.
