| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | 811 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

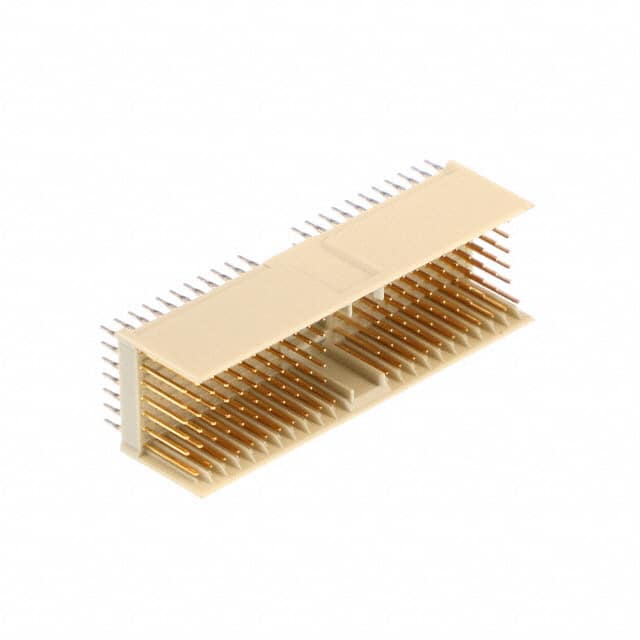

The Harting 17011542205 is a hard metric header connector designed for backplane applications.
It features 154 positions, arranged as 110 signal contacts plus 44 ground contacts in a 5+2 row configuration. The connector has a 2.00mm pitch and utilizes through hole mounting with press-fit termination for reliable electrical and mechanical connection. Contact finish is gold or gold-palladium.
This connector is fully loaded with all positions populated. The press-fit termination eliminates the need for soldering, reducing assembly time and thermal stress. The 2.00mm pitch allows for high-density packing on the PCB. The gold or gold-palladium contact finish ensures corrosion resistance and reliable signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.49 | $11.49 |
| 10+ | $9.76 | $9.76 |
| 20+ | $9.47 | $9.47 |
| 50+ | $9.18 | $9.18 |
| 100+ | $8.98 | $8.98 |
| 200+ | $8.11 | $8.11 |
| 500+ | $7.72 | $7.72 |
| 1,000+ | $7.09 | $7.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
154 positions (110 signal + 44 ground).
2.00mm (0.079 inches).
Through hole.
Press-fit.
Gold or gold-palladium.
5 + 2 rows.
RoHS3 compliant (unverified).
