| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

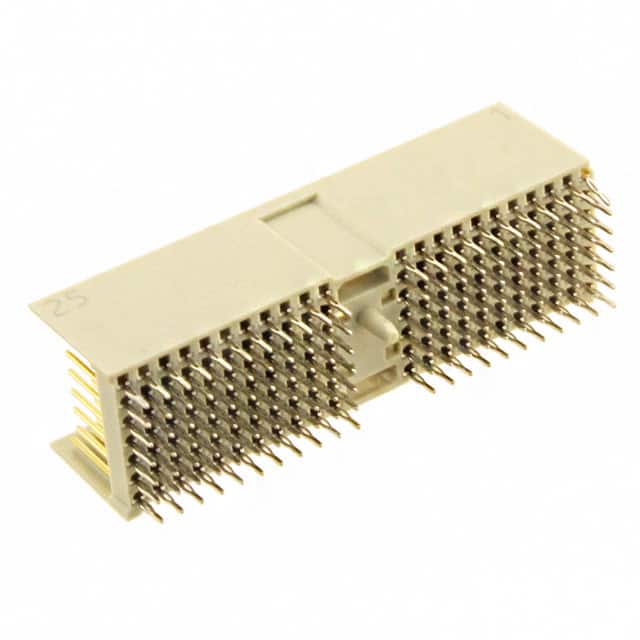

The Harting 17011542203 is a hard metric backplane connector designed for CompactPCI P1 applications. It features a 154-position configuration with 110 signal contacts and 44 ground contacts, all loaded. The connector uses a 2.00mm pitch and a 5 + 2 row arrangement.
Termination is press-fit, enabling reliable solderless connections in backplane assemblies. The mounting type is through hole, and the contact finish is gold or gold-palladium for reliable signal integrity. The connector style is A 22.
This header with male pins is suitable for high-density backplane designs requiring robust mechanical and electrical performance. The press-fit termination reduces assembly time and improves reliability compared to soldered connections.
The pitch is 2.00mm (0.079 inches).
It has 154 positions total: 110 signal contacts and 44 ground contacts.
Through hole mounting with press-fit termination.
The connector style is A 22.
Gold or gold-palladium.
