| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

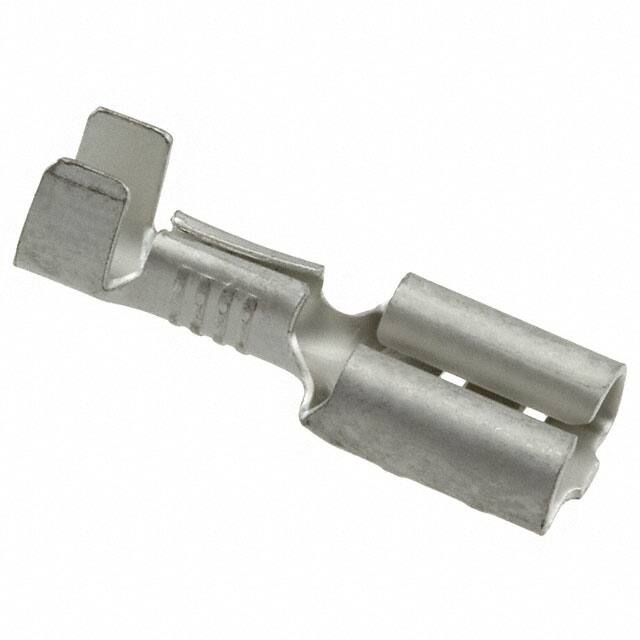

The TE Connectivity 170084-2 is a non-insulated female quick disconnect terminal from the FASTON 250 series. It is designed for free hanging (in-line) mounting and uses a crimp termination method for secure wire attachment. The terminal accepts wire gauges from 14 to 18 AWG and features a tab width of 0.250" (6.35mm) and a tab length of 0.307" (7.80mm). The overall length is 19.40mm (0.764").
The contact is made from phosphor bronze, providing good conductivity and mechanical durability. This terminal is part of TE Connectivity's widely used FASTON product family, known for reliable quick-connect applications in automotive, industrial, and appliance wiring. The non-insulated design allows for use in applications where insulation is not required or where additional insulation can be applied separately.
Free hanging (in-line) mounting.
14-18 AWG.
0.250" (6.35mm).
Phosphor Bronze.
No, it is non-insulated.
Crimp.
Female.
