| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
166 pcs
|
166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style |

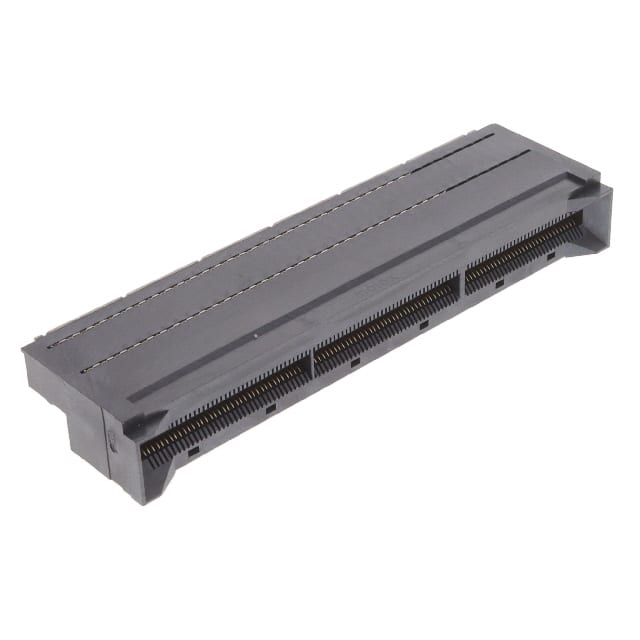

The Molex 1700820216 is a dual female edgeboard connector designed for board-edge mounting with through-hole press-fit termination. It features 216 positions arranged in 2 rows with a 2.35mm (0.092") pitch. The connector accepts a non-specified dual-edge card with a thickness of 0.093" (2.36mm).
Contacts are made of copper alloy with a gold finish of 30.0µin (0.76µm) thickness, ensuring reliable electrical performance. The connector includes a board lock feature for secure attachment and is rated for an operating temperature range of -40°C to 85°C. The housing is black.
This connector is suitable for applications requiring high-density card edge connections with a press-fit termination style, commonly used in backplane and daughtercard configurations.
216 positions arranged in 2 rows.
2.35mm (0.092").
Board edge, through hole with press-fit termination.
-40°C to 85°C.
Gold, 30.0µin (0.76µm) thickness.
