| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,500 pcs
|
8500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

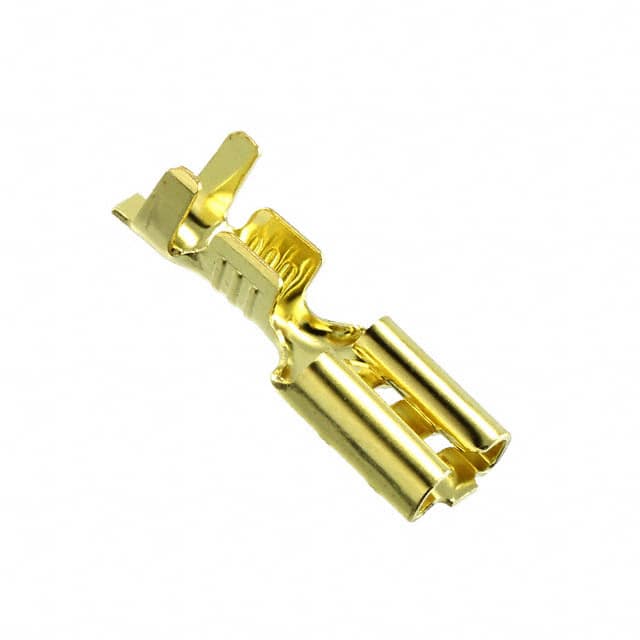

The TE Connectivity 170037-1 is a non-insulated female quick disconnect terminal designed for reliable wire-to-tab connections. It accommodates 16-20 AWG wire and features a 0.187" (4.75mm) tab width with a 0.020" (0.51mm) tab thickness.
This terminal uses a crimp termination style and is made from brass for good conductivity and mechanical strength. It is designed for free hanging (in-line) mounting, making it suitable for a variety of wiring harness and panel applications.
With an overall length of 15.20mm and a tab length of 6.40mm, this standard terminal type provides a compact and secure connection point for quick disconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.06 | $0.06 |
| 2,500+ | $0.06 | $0.06 |
| 5,000+ | $0.05 | $0.05 |
| 9,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 170037-1 terminal accepts 16-20 AWG wire.
The tab width is 0.187" (4.75mm).
No, the 170037-1 is a non-insulated terminal.
The termination style is crimp.
The contact material is brass.
