| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180,000 pcs
|
180000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

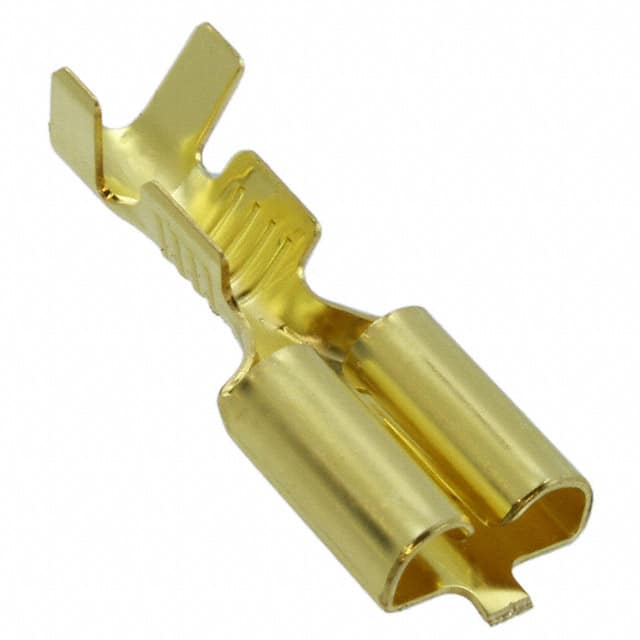

The TE Connectivity 170031-1 is a standard female quick disconnect terminal designed for free hanging (in-line) mounting. It accepts 14-20 AWG wire and uses a crimp termination method for secure connections.
The terminal has a tab width of 0.250" (6.35mm), a tab length of 0.307" (7.80mm), and a tab thickness of 0.032" (0.81mm). The overall length is 0.756" (19.20mm). The contact is made of brass and is non-insulated.
This component is commonly used in power and signal applications where a reliable, quick-connect interface is required. The non-insulated design allows for use in applications where additional insulation or heat shrink is applied after termination.
The terminal accepts 14-20 AWG wire.
The tab width is 0.250" (6.35mm).
No, it is non-insulated.
It uses crimp termination.
The contact material is brass.
