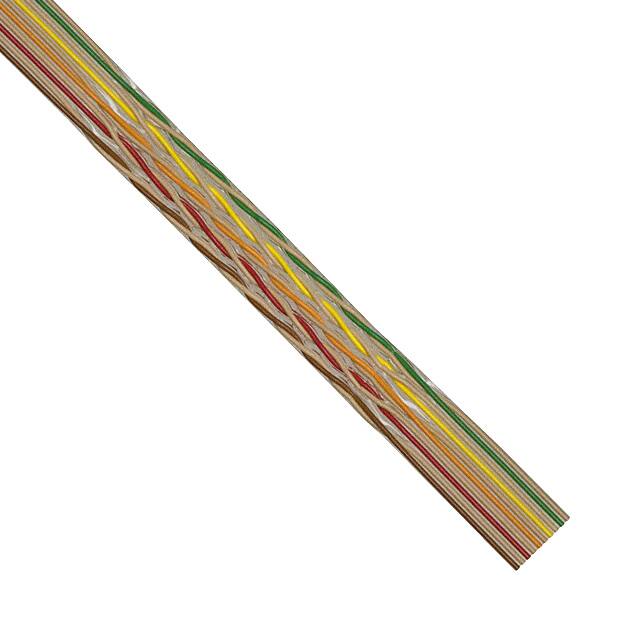

The 3M 1700/10SF is a flat twisted pair ribbon cable from the 1700 series, designed for mass termination to IDC connectors. It consists of 10 conductors arranged as 5 twisted pairs, each using 28 AWG stranded tinned copper wire (7 strands of 36 AWG) on a 0.050" (1.27mm) pitch. The cable is unshielded with a PVC jacket available in multiple colors (10 color repeat with tan common).
Electrical specifications include a voltage rating of 300V (USA) / 150V (Canada) / <50V (EU), characteristic impedance of 122 Ω balanced and 101 Ω unbalanced, capacitance of 43.6 pF/m balanced and 52.2 pF/m unbalanced, inductance of 0.66 μH/m balanced and 0.53 μH/m unbalanced, propagation delay of 5.35 ns/m balanced and 5.28 ns/m unbalanced, and velocity of propagation of 62% balanced and 63% unbalanced. Insulation resistance exceeds 1 × 10⁹ Ω/10 ft.
The cable operates over a temperature range of -20°C to +105°C (USA) or -20°C to +80°C (Canada). It carries flammability ratings of VW-1 (USA) and FT1 (Canada) and is UL recognized under Style 20462 (File E42769). The twisted pair construction reduces crosstalk in balanced drive applications, making it suitable for internal wiring of electronic equipment, prototyping, and cable assemblies.
The cable is rated 300V in the USA, 150V in Canada, and <50V in the EU.
USA: -20°C to +105°C; Canada: -20°C to +80°C.
RoHS status is listed as RoHS3 compliant but unverified; the datasheet does not explicitly state RoHS compliance.
28 AWG stranded (7 strands of 36 AWG) with 10 conductors arranged as 5 twisted pairs.
Balanced: 122 Ω; Unbalanced: 101 Ω.
USA: VW-1; Canada: FT1.
UL Style 20462, File E42769.
