| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | 15 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstand Voltage | |
| Flange Feature | |
| Front Insulator Material | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Rear Insulator Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination Style |

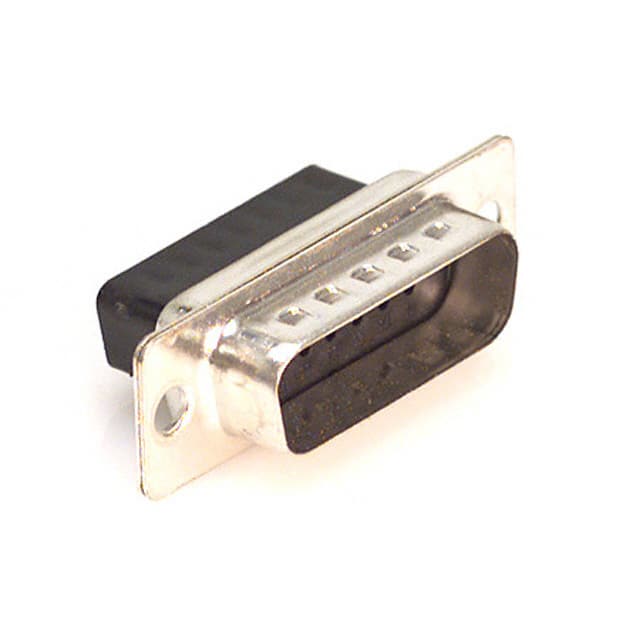

The 170-015-172L000 is a D-Sub connector housing from NorComp Inc., designed for male contacts. It accommodates 15 contacts in a 2-row configuration, making it suitable for standard D-Sub applications. The housing is rated for 5A continuous current with a maximum contact resistance of 15 mOhms and an insulation resistance of 1000 MOhms minimum. It can withstand 500 VAC for 1 minute. The operating temperature range is -50°C to +100°C.
The housing features a tin-plated steel shell and a free hanging (in-line) mounting style. Termination is via crimp & poke, compatible with NorComp contact series 170-001 and 170-101. The front insulator is made of PBT (UL94V-0) and the rear insulator of PA66 (UL94V-0). This connector housing is RoHS compliant and suitable for cable assembly applications in industrial and data communication environments.
15 positions in 2 rows.
5 A.
500 VAC for 1 minute.
Free hanging (in-line).
15 mOhms maximum.
1000 MOhms minimum.
-50°C to +100°C.
