| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,800 pcs
|
5800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

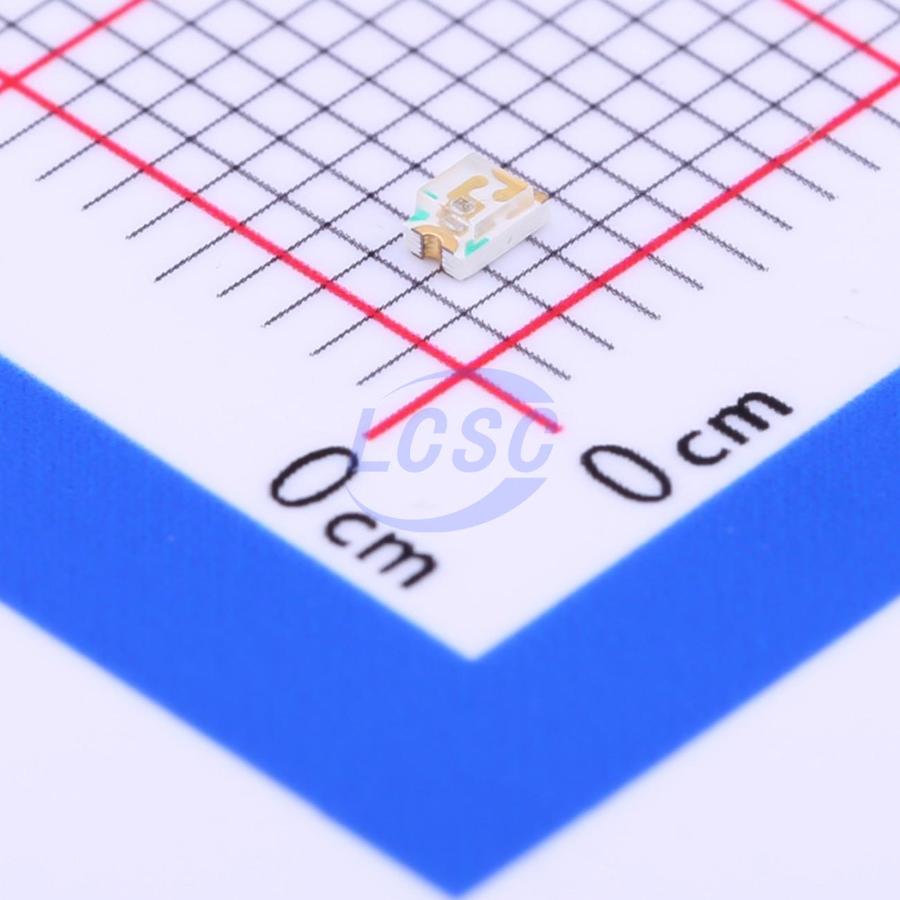

This Everlight Electronics 17-21/GHC-YR1S2/3T is a mono-color Chip LED designed for surface mounting. It comes in an 0805 (2012 Metric) package with dimensions of 2.00mm L x 1.25mm W and a maximum height of 1.00mm.
The LED emits a brilliant green light with a peak wavelength of 518nm and a dominant wavelength between 520-535nm. It offers a typical luminous intensity of 199mcd at 20mA forward current and a wide viewing angle of 140°.
Electrical characteristics include a maximum forward voltage of 3.7V and a maximum reverse voltage of 5V. The operating temperature range is -40°C to +85°C. The component is compatible with infrared and vapor phase reflow soldering processes.
Applications include backlighting in dashboards and switches, indicators and backlighting in telecommunications equipment like telephones and faxes, and general use in indoor signboards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the 17-21/GHC-YR1S2/3T LED is 3.3V at 20mA.
The 17-21/GHC-YR1S2/3T LED is supplied in an 0805 (2012 Metric) package.
The operating temperature range for this LED is -40°C to +85°C.
Yes, the 17-21/GHC-YR1S2/3T LED is RoHS3 Compliant.
