| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| ESR (Equivalent Series Resistance) | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tolerance | |
| Type |

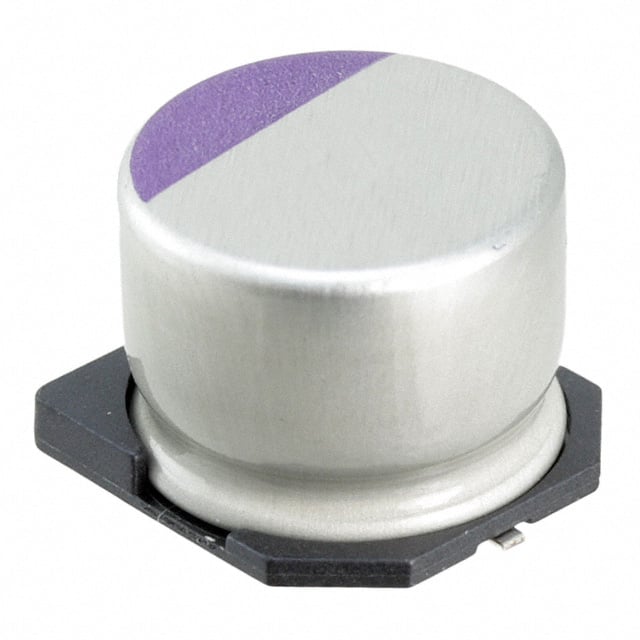

The Panasonic Electronic Components 16SVP150M is an aluminum polymer capacitor with a capacitance of 150 µF and a rated voltage of 16 V. It belongs to the OS-CON™, SVP series and is designed for general-purpose applications.
This capacitor has an equivalent series resistance (ESR) of 30mOhm and a ripple current rating of 151 mA at 120 Hz and 3.02 A at 100 kHz. It operates within a temperature range of -55°C to 105°C and has a rated lifetime of 2000 hours at 105°C.
The 16SVP150M is packaged in a radial, can - SMD format and is designed for surface mounting. Its dimensions are 0.394 inches in diameter and 0.315 inches in height. The surface mount land size is 0.406 x 0.406 inches.
This component is RoHS3 compliant, indicating adherence to environmental standards for hazardous substances.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 150 µF.
The rated voltage is 16 V.
The Equivalent Series Resistance (ESR) is 30mOhm.
The operating temperature range is -55°C to 105°C.
The rated lifetime is 2000 hours at 105°C.
The tolerance is ±20%.
It is a Polymer capacitor.
