| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

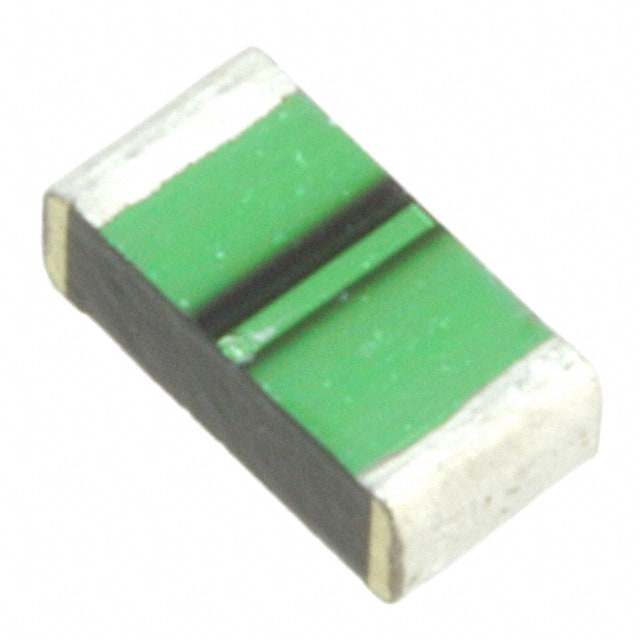

The Rubycon 16ST155MA23216 is a surface-mount film capacitor with a capacitance of 1.5 µF and a voltage rating of 16 VDC. It features a metallized acrylic dielectric and offers a tolerance of ±20%. The component is housed in a standard 1206 (3216 metric) package with solder pad terminations, measuring 3.20 mm in length, 1.60 mm in width, and 1.40 mm in height.
This capacitor is designed for DC link and DC filtering applications, providing stable performance over an operating temperature range of -55°C to 125°C. The surface-mount design enables efficient assembly in automated manufacturing processes.
With its compact footprint and robust temperature range, the 16ST155MA23216 is suitable for power supply filtering, DC-DC converter circuits, and other general-purpose DC filtering needs in electronic systems.
The capacitance is 1.5 µF.
The voltage rating is 16 VDC.
The tolerance is ±20%.
The dielectric material is acrylic, metallized.
The package is 1206 (3216 metric).
The operating temperature range is -55°C to 125°C.
Typical applications include DC link and DC filtering.
