| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,777 pcs
|
8777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current - Max | |
| Halogen Free | |
| Height | |
| Hold Current | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation | |
| Resistance | |
| Resistance (Initial) | |
| Resistance - Post Trip | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Time to Trip | |
| Trip Current | |
| Type | |
| Voltage | |
| Voltage - Max | |
| Width |

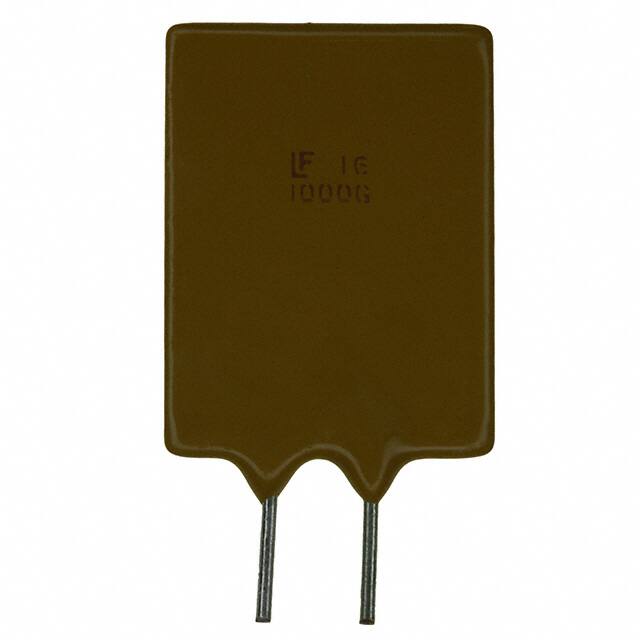

The Littelfuse 16R1000GMR is a radial leaded polymeric PTC resettable fuse from the 16R series. It is designed for overcurrent protection in electronic circuits, with a hold current of 10 A at 20°C still air. The trip current is 17 A, and the device can withstand a maximum voltage of 16 V and a maximum fault current of 100 A. Typical time to trip is 6 seconds at 50 A. Power dissipation in the tripped state is 3.6 W.
Initial resistance is 4 mΩ, rising to 10.2 mΩ after tripping. The device is through-hole mounted in a radial disc package with a lead spacing of 5.10 mm. Dimensions are 16.50 mm x 3.00 mm x 25.20 mm. Operating temperature range is -40°C to 85°C.
Applications include USB overcurrent protection, computers and peripherals, and general electronics requiring resettable protection. The device is RoHS compliant, lead-free, and halogen-free as verified by the datasheet.
10 A.
16 V DC.
100 A.
Typically 6 seconds at 50 A.
Radial leaded disc package with 5.10 mm lead spacing.
-40°C to 85°C.
Initial resistance 4 mΩ, post-trip resistance 10.2 mΩ.
