Mfr Part #:

1689323

Name: 1689323
Brand: Phoenix Contact
SKU: 1689323

Mfr Name: Phoenix Contact

Description:

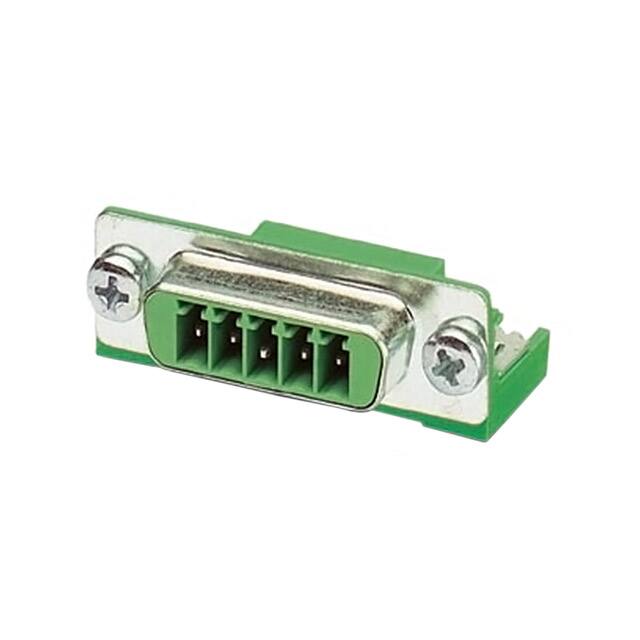

CONN D-TYPE RCPT 5POS R/A SLDR

Stock on Request

1689323 Description

Short technical summary and product information.

CONN D-TYPE RCPT 5POS R/A SLDR

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

1688825

Phoenix Contact

CONN D-TYPE RCPT 5POS R/A SLDR

Category	Headers, Plugs and Sockets
Manufacturer Name	Phoenix Contact
Color	Green
Contact Mating Finish	Tin
Current	8A
Features	Board Lock, DB15 Shape, Mating Flange
Header Orientation	90°, Right Angle
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	5
Operating Temperature	-20°C ~ 80°C
Pitch	0.138" (3.50mm)
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage	250 V
