| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Surface | |
| Contact Type | |
| Current Rating (Amps) | |
| Extraction Force per Contact | |
| Flange Feature | |
| Ingress Protection | |
| Insertion Force per Contact | |
| Insertion/Withdrawal Cycles | |
| Insulating Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Voltage | |
| SVHC Present | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Temperature Range | |
| Termination | |
| Termination Style |

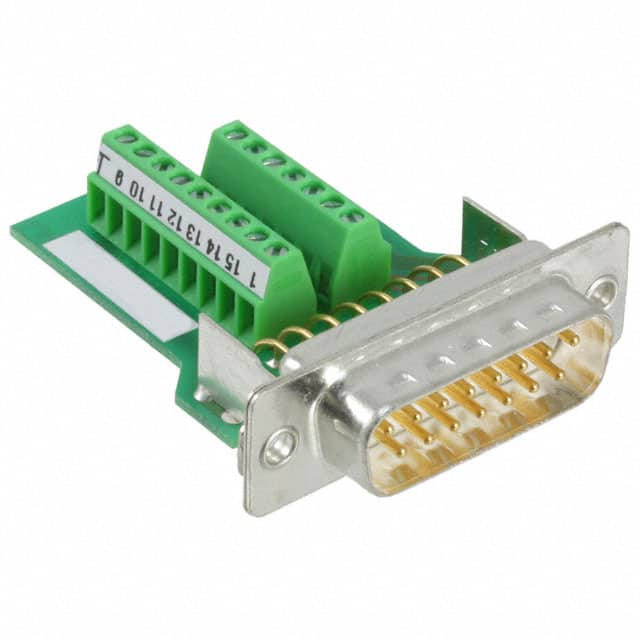

The Phoenix Contact 1688078 is a D-Sub plug connector from the VARIOSUB series, designed for industrial signal and data transmission. It features 15 male pins with gold-plated contacts for reliable low-resistance connections. The terminal block termination simplifies field wiring without special tools.
This connector is rated for an operating voltage of 63V and supports a temperature range of -20 to +80°C. The insulating material is PBTP with a UL94 V-0 flammability rating. Contact resistance is ≤2.5 mOhm, and insulation resistance is ≥5000 MOhm. The housing offers IP20 protection (with IP67 available for compatible housings).
The VARIOSUB series utilizes a push-pull locking mechanism for quick and secure mating. The connector is free-hanging (in-line) and accepts conductor cross-sections up to 0.35 mm². It is suitable for applications requiring up to 200 mating cycles.
15 positions.
63V.
Free hanging (in-line).
Gold.
-20 to +80°C.
≥5000 MOhm.
≤2.5 mOhm.
