| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Lead Style | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Package / Case | |
| Response Time | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

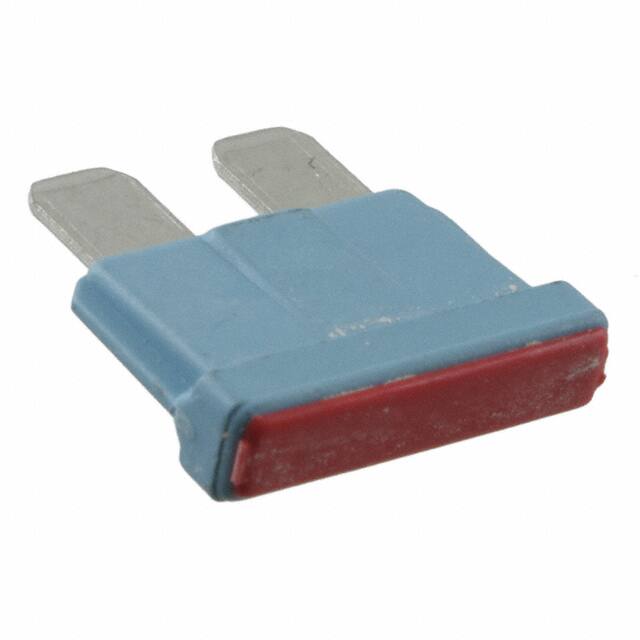

The Littelfuse 166.7000.5152 is an automotive blade fuse rated for 15A at 80VDC with a slow blow (time-delay) response characteristic. It features a melting I²t of 162 and a breaking capacity of 1kA at rated voltage. The fuse is packaged in the standard ATO/ATC blade form factor, measuring 19.00mm x 5.00mm x 13.20mm, and is color-coded blue per industry convention for 15A rating.
This fuse requires a separate holder for mounting and is designed for use in automotive and other DC circuits where time-delay characteristics are needed to handle inrush currents. It carries cULus approval and is marked with a blue body for easy identification. The slow blow response allows the fuse to tolerate temporary current surges without nuisance opening, making it suitable for circuits with capacitive loads or motors.
The ATO/ATC blade package is a widely used standard in automotive fuse blocks, ensuring compatibility with existing holders and panels. The 1kA breaking capacity provides reliable interruption under fault conditions up to the rated voltage.
15 A.
80 VDC.
1 kA at rated voltage.
Slow blow (time-delay).
Blade, ATO/ATC.
162.
cULus approved.
