| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cable Diameter Range | |
| Cable Exit | |
| Cable Type | |
| Color | |
| Features | |
| Flammability Rating | |
| Frontsealing Material | |
| Gland Material | |
| IP Rating | |
| Jack Screw Material | |
| Material | |
| Number of Positions | |
| O-Ring Material | |
| Operating Temperature Range | |
| Packaging Type | |
| Plating | |
| Recommended Torque | |
| Shielding | |
| Thread Size |

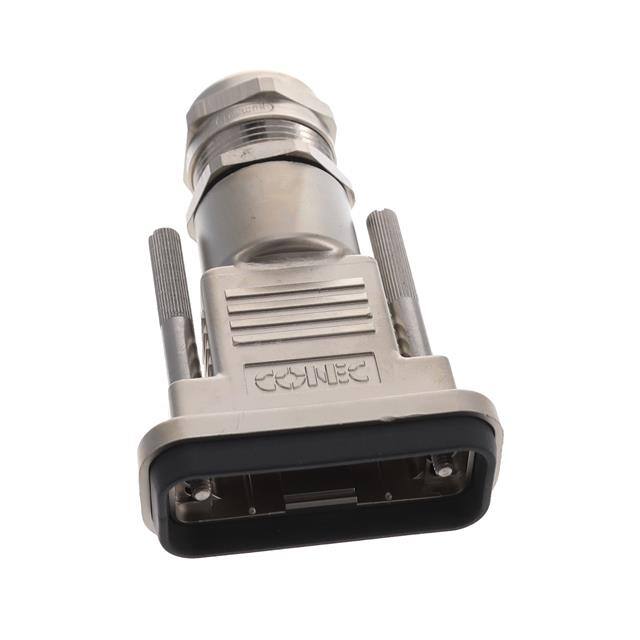

The Conec 165X15029X is a one-piece D-sub backshell designed for water resistant applications. It accommodates 15 positions with a 180° cable exit and supports round cables from 7 mm to 12 mm in diameter. The hood is made of metallized ABS with UL 94 V-0 flammability rating, ensuring flame retardant performance.
The backshell includes a nickel-plated brass gland for cable clamping and an NBR O-ring for sealing. Stainless steel jack screws with a recommended torque of 30 Ncm provide secure mating. The frontsealing is made of TPE with UL 94 V-0 rating, contributing to the IP67 dust tight and waterproof protection.
This product is RoHS compliant and operates over a temperature range of -30°C to +90°C. It is packaged in bulk and is suitable for use in industrial, data communication, and harsh environment applications where reliable sealing and shielding are required.
It supports 15 positions.
Yes, it is rated IP67 for dust tight and waterproof protection.
It accepts round cables from 7 mm to 12 mm in diameter.
The hood is made of metallized ABS with UL 94 V-0 flammability rating.
-30°C to +90°C.
180° (straight cable exit).
Yes, it is RoHS3 compliant per the datasheet.
