| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

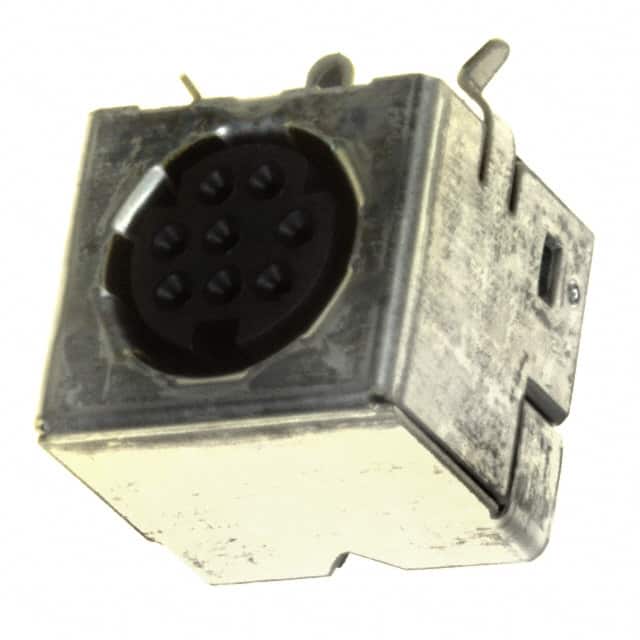

The TE Connectivity 1658998-1 is a Mini DIN 8 position receptacle designed for reliable signal and power connections in compact electronic assemblies. It features female socket contacts with gold plating for low resistance and corrosion resistance. The connector is shielded to reduce electromagnetic interference and includes a board lock for secure attachment to the PCB.
Electrical ratings include 1 A current capacity and 30 V DC voltage rating, suitable for low-power signal and control applications. The operating temperature range of -55°C to 105°C allows use in harsh environments. The through hole right angle mounting orientation facilitates space-saving designs on PCBs.
The shell is made of thermoplastic with UL94 V-0 flammability rating, ensuring safety in consumer and industrial equipment. The push-pull fastening type provides easy mating and unmating. This connector is commonly used in audio/video equipment, data interfaces, and computer peripherals.
8 positions.
1 A.
30 V DC.
Through hole, right angle.
-55°C to 105°C.
Yes, it is shielded.
Gold.
