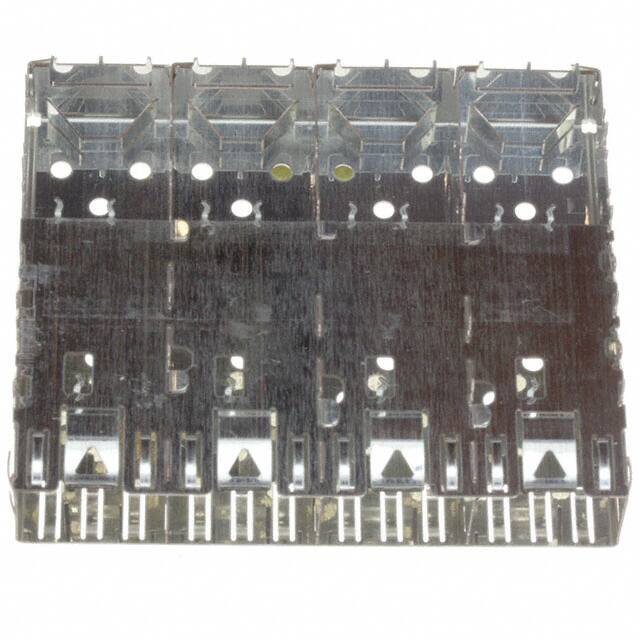

1658744-1 The TE Connectivity 1658744-1 is a 1x4 ganged SFP cage assembly with press-fit termination and right-angle through-hole mounting. It features EMI shielding and tin over nickel flash plating on copper alloy contacts.
Mfr Part #:

1658744-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 1658744-1 is a 1x4 ganged SFP cage assembly with press-fit termination and right-angle through-hole mounting. It features EMI shielding and tin over nickel flash plating on copper alloy contacts.
✓ Total Stock: 140 pcs

1658744-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
140 pcs
On Request
140 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1658744-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Features
Lead Style
Material
Mounting Type
Number of Ports
Plating
Termination
Termination Style
View Similar Products (0)

1658744-1 Description

Short technical summary and product information.

The TE Connectivity 1658744-1 is a 1x4 ganged SFP cage assembly designed for use with SFP pluggable transceivers. It features a press-fit termination style and right-angle through-hole mounting for secure PCB attachment.



The assembly includes 4 ports arranged in a 1x4 configuration with 14.25 mm spacing between ports. Contacts are made from 0.25 mm thick copper alloy with tin over nickel flash plating (tin per ASTM B 545, nickel flash per QQ-N-290). The cage is fabricated from 0.25 mm thick nickel silver alloy (no plating).



This cage assembly is EMI shielded to reduce electromagnetic interference. It references application specification 114-13120 for recommended drill hole diameters and plating thicknesses. The part is RoHS3 compliant, has MSL 1 (unlimited), and is REACH unaffected (all compliance unverified).



Standard package quantity is not verified. Operating temperature range is not provided.

1658744-1 Quick Information

Product Type: SFP Cage Assembly
Series: 1658744
Canonical Name: SFP Cage Assembly, 1x4 (Ganged), Press-Fit, Right Angle, EMI Shielded
Subcategory: Pluggable Connector Assemblies

1658744-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1658744-1 Features

  • 1x4 ganged SFP cage assembly.
  • Press-fit through-hole right-angle mounting.
  • EMI shielded design for signal integrity.
  • Tin over nickel flash contact plating.
  • 14.25 mm spacing between ports.

1658744-1 Applications

  • Ideal for Gigabit Ethernet SFP modules.
  • Used in network switches and routers.
  • Suitable for high-speed data center networking.
  • Supports fiber optic and copper transceivers.

1658744-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of the 1658744-1?

Through hole, right angle mounting.

How many ports does the 1658744-1 have?

4 ports in a 1x4 configuration.

What is the termination style?

Press-fit termination.

Does the cage assembly include EMI shielding?

Yes, it features EMI shielding.

What materials and plating are used?

Contacts: copper alloy with tin over nickel flash plating; cage: nickel silver alloy.

What is the port spacing?

14.25 mm between ports.

What application spec should be referenced for PCB design?

Application specification 114-13120.
