| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,340 pcs
|
1340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
129 pcs
|
129 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | 1448 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

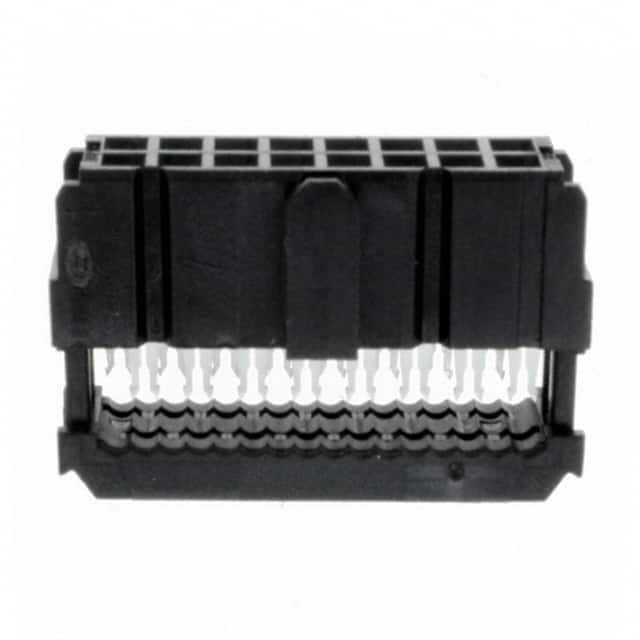

The TE Connectivity 1658622-3 is a 16-position IDC (Insulation Displacement Connector) receptacle designed for termination to 26-28 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 0.100" row spacing, arranged in 2 rows. The connector uses forked contacts with a gold or gold-palladium finish of 30.0µin thickness, ensuring reliable signal integrity.
The mounting type is free hanging (in-line), making it suitable for cable-to-cable or cable-to-board applications where a permanent or semi-permanent connection is needed. The connector includes feed through and polarizing key features to ensure correct orientation and secure mating.
This connector is commonly used in internal wiring of electronic equipment, data communication systems, and industrial control panels. The IDC termination allows for quick and reliable mass termination of ribbon cables without stripping wires, reducing assembly time.
The housing is black, and the part is claimed RoHS3 compliant and REACH unaffected, though these compliance claims are unverified. No datasheet was available for review, and the manufacturer page could not be accessed.
16 positions.
2.54mm (0.100").
Free hanging (in-line).
26-28 AWG ribbon cable.
Gold or gold-palladium, 30.0µin thickness.
IDC (Insulation Displacement Connection).
2 rows.
