| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,200 pcs
|
7200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

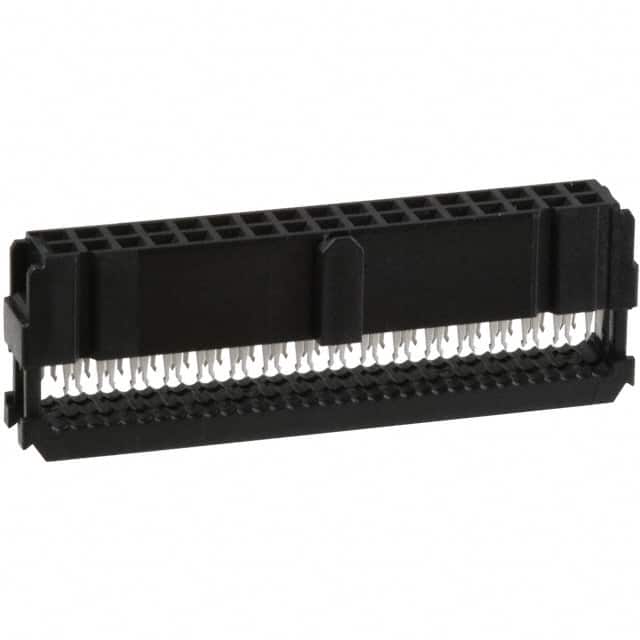

The TE Connectivity 1658621-8 is a 34 position IDC (Insulation Displacement Connector) receptacle designed for use with 26-28 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, making it compatible with standard 0.100" grid ribbon cable.
The connector uses forked contact type with gold plating (15.0µin / 0.38µm) for reliable signal integrity. It includes feed through and polarizing key features for correct orientation and pass-through wiring. The housing is black and the mounting type is free hanging (in-line), suitable for cable-to-board or cable-to-cable connections.
This connector is commonly used in internal wiring applications where mass termination of ribbon cable is required. The IDC termination style allows for quick assembly without stripping or soldering wires.
34 positions.
2.54mm (0.100").
26-28 AWG ribbon cable.
Free hanging (in-line).
Gold, 0.38µm (15.0µin).
