| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,150 pcs
|
1150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

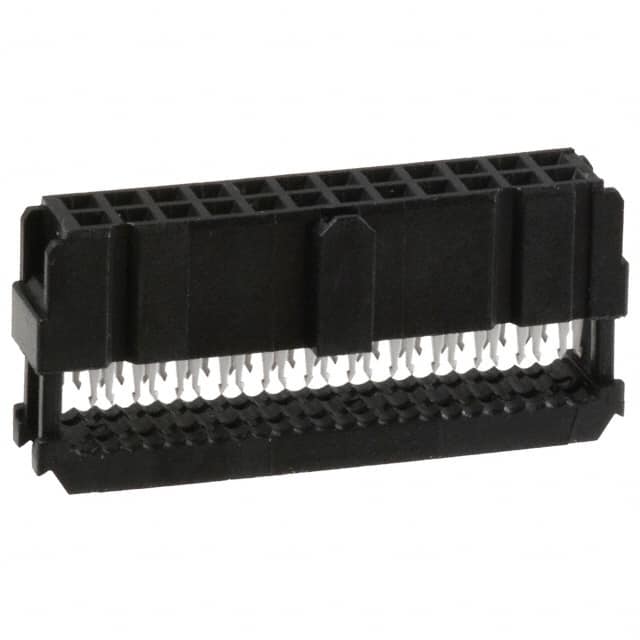

The TE Connectivity 1658621-5 is a 24-position IDC (Insulation Displacement Connection) receptacle designed for use with 26-28 AWG ribbon cable. It features gold-plated forked contacts with a thickness of 15.0µin (0.38µm) for reliable signal integrity. The connector has a 2.54mm (0.100") pitch and 0.100" row spacing, making it compatible with standard ribbon cable layouts.
This receptacle is free hanging (in-line) mounted, allowing flexible cable routing without panel cutouts. It includes a feed through design for daisy-chaining multiple connectors and a polarizing key to ensure correct mating orientation. The black housing is made for durability in internal wiring applications.
Typical applications include computer peripherals, industrial control systems, and any equipment requiring mass termination of ribbon cables. The IDC termination method provides quick, reliable connections without stripping wires.
24 positions.
2.54mm (0.100").
Free hanging (in-line).
26-28 AWG.
Gold, 15.0µin (0.38µm).
Yes, feed through and polarizing key.
IDC (Insulation Displacement Connection).
