| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,450 pcs
|
2450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

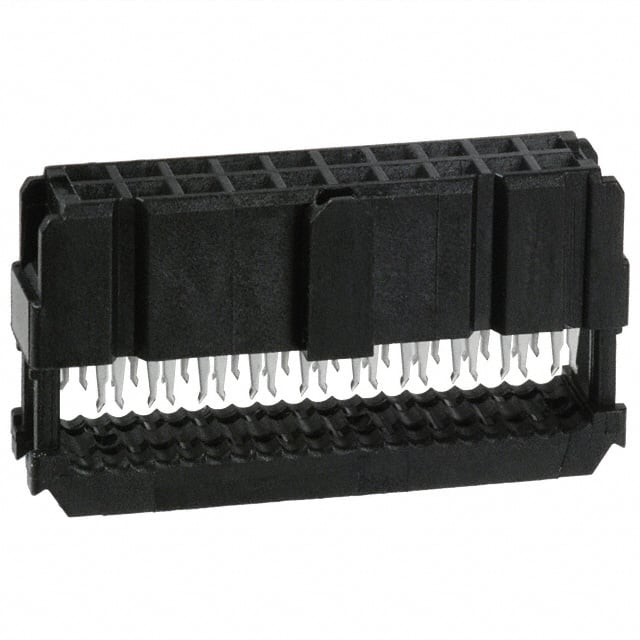

The TE Connectivity 1658621-4 is a 20-position rectangular connector receptacle designed for IDC (Insulation Displacement Connection) termination to 26-28 AWG ribbon cable. It features two rows with a standard 2.54mm (0.100-inch) pitch and row spacing, and forked gold-plated contacts with a 15.0 microinch (0.38 micrometer) thickness for reliable signal integrity.
This free-hanging (in-line) connector includes feed-through design and a polarizing key for correct orientation during mating. The black housing supports efficient cable assembly without the need for additional crimping or soldering, making it ideal for high-density cable-to-board interfaces.
Typical applications include internal wiring in computer peripherals, industrial equipment, and data communication systems where secure, mass-terminated ribbon cable connections are required. Its compact design and low-profile support streamlined cable management.
Receptacle.
20 positions in 2 rows.
2.54mm (0.100 inches).
IDC (Insulation Displacement Connection).
26-28 AWG ribbon cable.
Gold with 15.0 microinch (0.38 micrometer) thickness.
Free hanging (in-line).
