| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,600 pcs
|
9600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

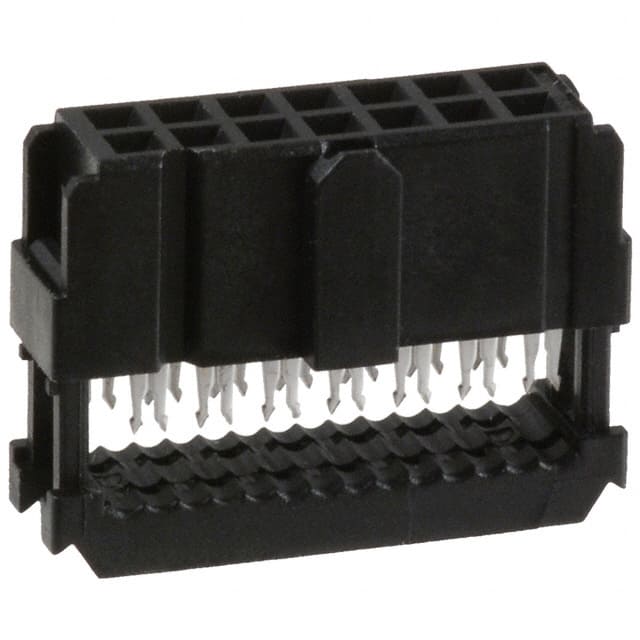

This is a 14-position IDC (Insulation Displacement Connector) receptacle from TE Connectivity, part of their rectangular connector family. It is designed for ribbon cable termination with 26-28 AWG wire.
The connector has a 2.54mm pitch and 2.54mm row spacing, with 2 rows of forked contacts. The contacts are gold plated with a thickness of 15.0µin (0.38µm) for reliable low-resistance connections. It includes feed-through and polarizing key features for correct alignment.
The mounting type is free hanging (in-line), making it suitable for cable-to-board or cable-to-cable connections where a panel-mount or board-mount is not required. The black housing is typical for IDC connectors.
14 positions in 2 rows.
2.54mm (0.100")
Free hanging (in-line).
IDC (Insulation Displacement Connector) for 26-28 AWG ribbon cable.
Gold, 15.0µin (0.38µm) thickness.
Yes, it includes feed-through and polarizing key.
26-28 AWG ribbon cable.
