| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

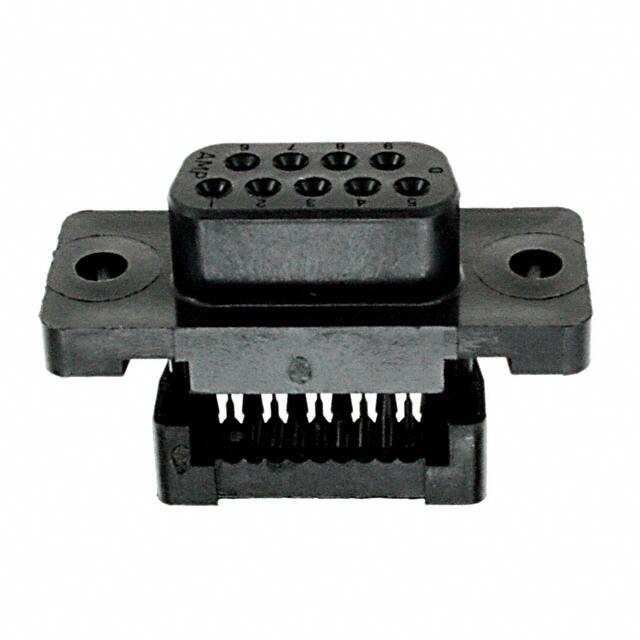

The TE Connectivity 1658614-4 is a D-Sub receptacle connector designed for reliable signal connections in a compact 9-position layout. It features female sockets with gold-plated contacts (30.0µin) for corrosion resistance and consistent electrical performance.
This connector uses IDC (Insulation Displacement Connection) termination for ribbon cable, enabling fast and reliable wire-to-connector assembly without stripping. The free hanging (in-line) mounting style allows flexible placement in cable assemblies.
Rated for 1.25A per contact, the 1658614-4 is suitable for low-power signal applications. The housing is made of UL94 V-0 rated material for flammability safety. The shell size is 1 (DE, E) and the flange feature is housing/shell unthreaded.
The connector has 9 positions arranged in 2 rows.
The current rating is 1.25A per contact.
It uses free hanging (in-line) mounting.
It uses IDC (Insulation Displacement Connection) for ribbon cable.
The contacts have a gold finish with a thickness of 30.0µin (0.76µm).
