| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

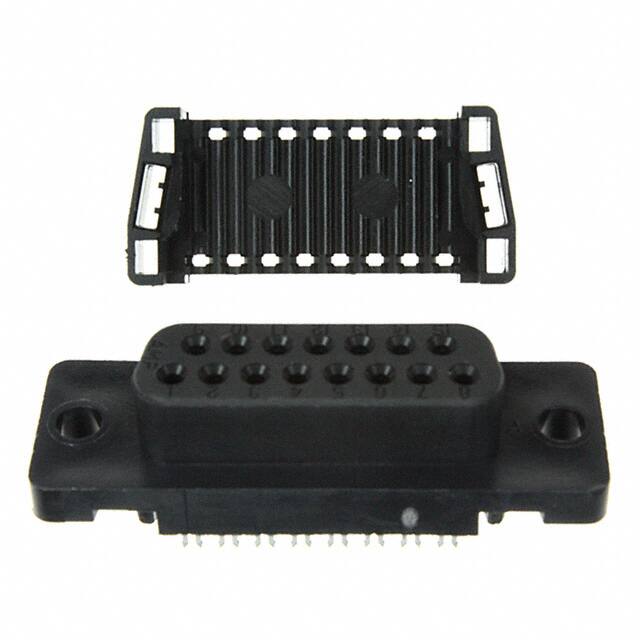

The TE Connectivity 1658614-3 is a D-Sub receptacle connector designed for use with ribbon cable. It features 15 positions arranged in 2 rows of female sockets. The contacts are gold plated with a thickness of 30 µinch, providing reliable signal connections. The connector is rated for a current of 1.25 A per contact. Termination is via IDC (Insulation Displacement Connection) for ribbon cable, making it suitable for mass termination. The connector is free hanging (in-line) with an unthreaded housing/shell flange. Shell size is 2 (DA, A). The housing material has a flammability rating of UL94 V-0. A feed-through feature is included. This connector is commonly used in computer and peripheral interface applications where a compact, reliable D-Sub connection is required.
It is a D-Sub receptacle with female sockets.
15 positions arranged in 2 rows.
1.25 A per contact.
IDC for ribbon cable.
Free hanging (in-line).
Gold with 30 µinch thickness.
UL94 V-0.
