| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

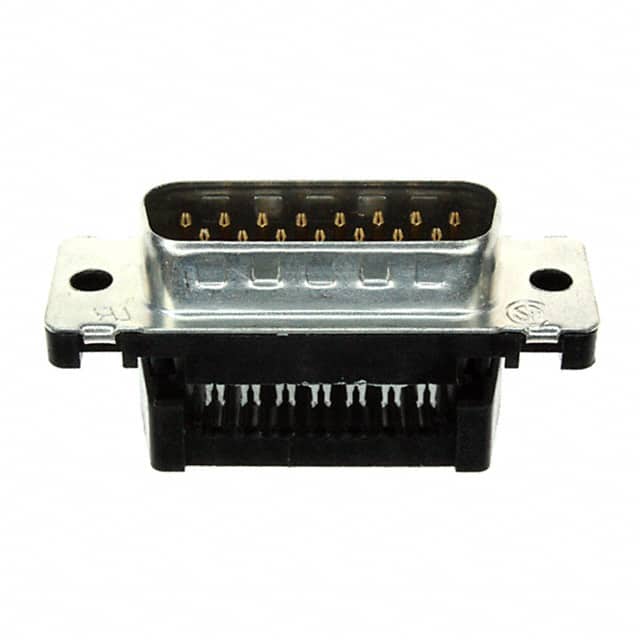

The TE Connectivity 1658613-3 is a 15-position D-Sub plug connector designed for free hanging (in-line) cable mounting. It features male pins arranged in 2 rows and uses IDC (Insulation Displacement Connection) termination for ribbon cable, simplifying assembly. Contacts are gold-plated for reliable signal integrity in demanding environments. The shell is made of steel with tin plating, providing durability and EMI shielding. Rated current is 1.25 A per contact. The connector has a shell size of 2 (DA, A) and a flange feature of housing/shell (unthreaded). Additional features include feed through and grounding indents. The housing material has a UL94 V-0 flammability rating. This connector is suitable for data communication, industrial control, and computer peripheral applications where a compact and reliable D-Sub interface is required.
15 positions arranged in 2 rows.
1.25 A per contact.
IDC (Insulation Displacement Connection) for ribbon cable.
Free hanging (in-line), designed for cable mounting.
UL94 V-0.
Gold-plated contacts and steel shell with tin plating.
Feed through and grounding indents.
