| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,088 pcs
|
1088 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

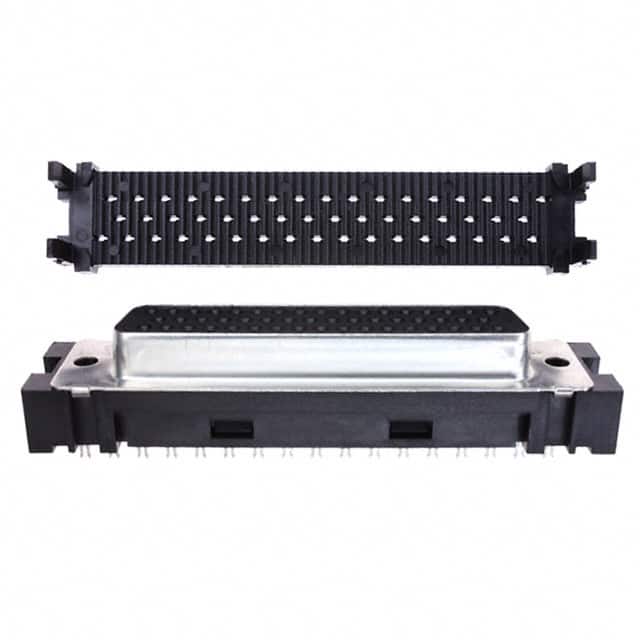

The TE Connectivity 1658606-1 is a D-Sub receptacle connector designed for reliable signal interconnection. It features 50 female socket contacts arranged in 3 rows, terminated via IDC (Insulation Displacement Connection) for ribbon cable, allowing quick and secure wire attachment without stripping. The connector offers a free-hanging (in-line) mounting style, making it suitable for cable-to-cable or cable-to-panel applications where a fixed board mount is not required.
The contacts are finished with gold plating (30.0µin / 0.76µm) for low contact resistance and corrosion resistance, ensuring stable signal integrity over time. The connector is rated for a continuous current of 1.25A per contact. The steel shell is tin-plated, providing EMI shielding and mechanical durability. The housing material meets UL94 V-0 flammability rating for safety in electronic equipment.
The shell size corresponds to layout 5 (DD, D), and a 4-40 threaded flange feature is provided for secure mating. This connector is commonly used in data communication, industrial control, and instrumentation systems where a compact 50-pin D-Sub interface is required.
This is a D-Sub receptacle connector with female socket contacts.
It has 50 positions.
IDC (Insulation Displacement Connection) for ribbon cable.
1.25 A per contact.
Free hanging (in-line) mounting.
Gold plating with 30.0µin (0.76µm) thickness.
Steel with tin plating.
