| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

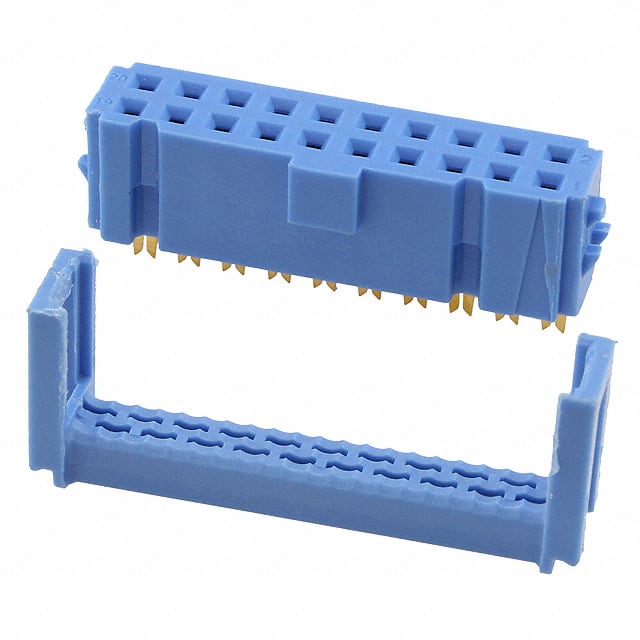

The TE Connectivity 1658527-8 is a 20-position rectangular receptacle connector designed for IDC (Insulation Displacement Connector) termination to 26-28 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, accommodating two rows of female socket contacts. The contacts are finished with 0.76µm (30.0µin) of gold for reliable conductivity.
The free hanging (in-line) mounting style simplifies cable assembly, and the connector includes feed-through design, a polarizing key, and strain relief features for secure mating and reduced wire stress. The blue housing provides visual identification for wire management.
This connector is suitable for internal wiring applications requiring a robust, board-to-cable interface. With its IDC termination, it enables quick mass termination of ribbon cables without wire stripping, making it ideal for prototyping and production environments.
This connector has 20 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
It is a free hanging (in-line) connector, not mounted on a PCB.
It uses IDC (Insulation Displacement Connector) termination for ribbon cable.
It accepts 26-28 AWG stranded or solid wire for ribbon cable.
