| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

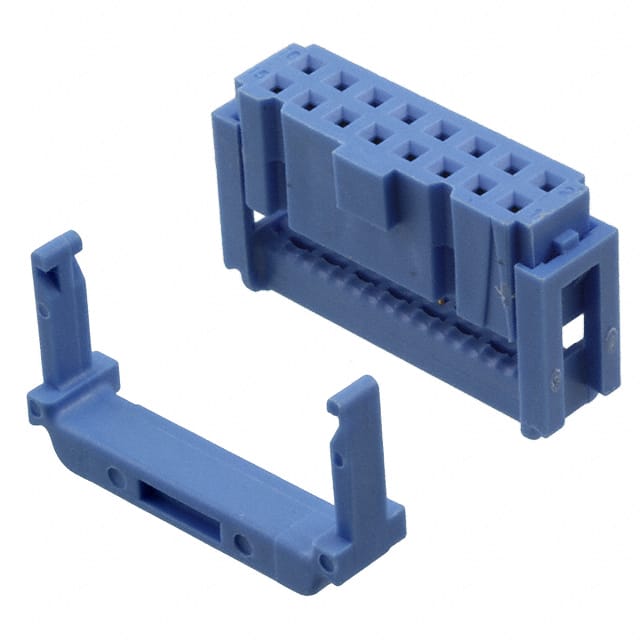

The TE Connectivity 1658527-7 is a 16-position IDC (Insulation Displacement Connector) receptacle designed for use with 26-28 AWG stranded or solid ribbon cable. It features female socket contacts with a gold finish of 30.0µin (0.76µm) for reliable signal transmission. The connector is configured with 2 rows and a standard 2.54mm (0.100") pitch, with a row spacing of 0.100" (2.54mm).
This connector is designed for free hanging (in-line) mounting, making it suitable for cable-to-board or cable-to-cable connections where a secure, low-profile interface is needed. The IDC termination allows for quick and efficient mass termination of ribbon cables without stripping wires. The blue housing includes features such as a feed through design, polarizing key, and strain relief to ensure proper mating and cable retention.
Typical applications include internal wiring in computers, peripherals, and industrial equipment where ribbon cable interconnects are common. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited) for moisture sensitivity. Note: Compliance data is unverified and should be confirmed with the manufacturer.
16 positions.
2.54mm (0.100").
Free hanging (in-line).
26-28 AWG, stranded or solid.
IDC (Insulation Displacement Connection).
Gold, 30.0µin (0.76µm) thickness.
Blue.
