| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

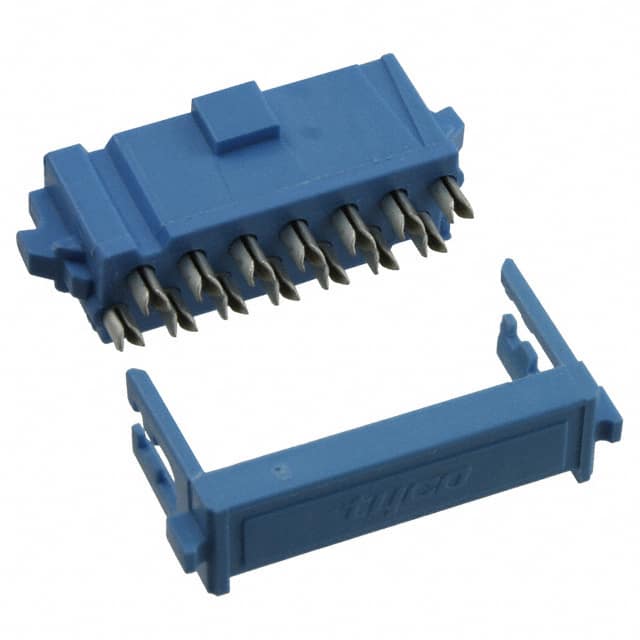

The TE Connectivity 1658526-8 is a 14-position IDC (Insulation Displacement Connector) receptacle designed for ribbon cable termination. It accepts 28-30 AWG wire gauge and terminates via IDC, eliminating the need for stripping. The connector features a 2.54mm (0.100") pitch and row spacing, with a 2-row configuration of female socket contacts. Contacts are gold-plated with a 30µin thickness for reliable low-resistance connections. The free-hanging (in-line) mounting style with a polarizing key ensures correct orientation during mating. The housing is blue and includes features for secure cable retention. This connector is typically used in internal wiring applications where compact, mass-termination of ribbon cables is required.
Designed for IDC termination to ribbon cable, the connector enables quick, reliable assembly without soldering. The 2.54mm pitch is industry standard compatible with existing header systems. The gold contact finish provides corrosion resistance and maintains signal integrity in low-current signal applications. The free-hanging design allows direct integration into harnesses or panel-mount setups.
The connector has 14 positions arranged in 2 rows.
The pitch and row spacing are both 2.54mm (0.100").
It uses a free-hanging (in-line) mounting style.
It accepts 28-30 AWG wire and terminates via IDC (Insulation Displacement Connection).
The contacts have a gold finish with a thickness of 30µin (0.76µm).
It is designed for ribbon cable termination.
Yes, it includes a polarizing key to ensure correct mating orientation.
